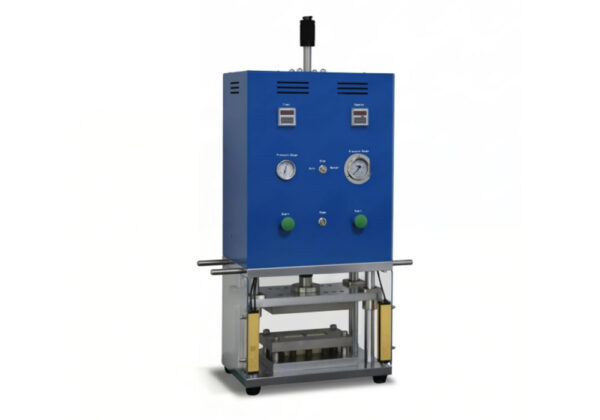

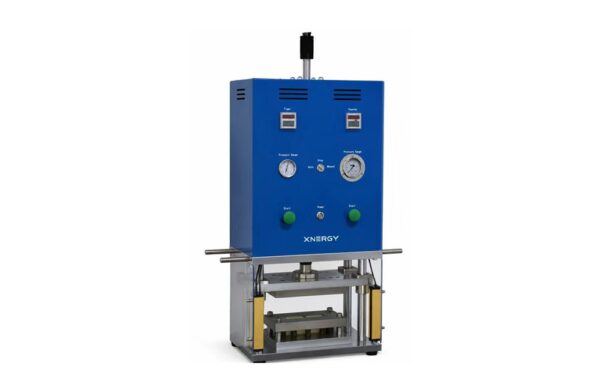

Aluminum-Plastic Film Forming Machine XN-CF-200
Need a bulk order? Request a competitive quote today!
Pouch Cell Aluminum-Plastic Film Punching Machine
I. Product Introduction
This equipment is designed for punching and forming aluminum-plastic film used in pouch lithium batteries. It provides stable forming performance and high precision, making it suitable for battery research laboratories, pilot production lines, and small-scale production environments.
II. Main Features
-
High-precision structure – Four-guide-column design ensures stable vertical movement and accurate forming.
-
Excellent forming quality – Precision mold design prevents fish-tail wrinkles and corner collapse.
-
Deep and stable stretching – Achieves deeper and more stable forming compared with similar equipment using the same aluminum-plastic film.
-
Easy operation – Mold replacement and forming depth adjustment are simple and convenient.
-
Durable materials – Mold components are made from high-strength chrome steel and alloy aluminum.
-
Surface protection – Environmentally friendly electroplating and baking paint provide corrosion resistance.
-
Safety protection – Equipped with light curtain safety protection and protective cover.
-
Compact design – Small footprint with aesthetically pleasing industrial design.
III. Technical Parameters
| Parameter | Specification |
|---|---|
| Maximum punching size | L150 mm × W120 mm (single pocket, four-side sealing type) |
| L100 mm × W100 mm (single/double pocket folding type) | |
| Punching depth | ≤ 6 mm |
| Forming quality | Pocket without damage; PP layer without wrinkles |
| Maximum aluminum-plastic film size | L240 mm × W160 mm |
| Equipment capacity | 200–400 pcs/hour |
| Power source | 3T |
| Power supply | AC 110V / 220V ±10% 50 Hz |
| Power | 0.3 kW |
| Air pressure | 0.5 MPa – 0.7 MPa |
| Equipment weight | 125 kg |
| Equipment dimensions | 460 × 320 × 925 mm |
IV. Mold Precision Parameters
| Parameter | Value |
|---|---|
| Mold core roughness | 0.4 |
| Upper and lower mold flatness | 0.02 mm |
| Mold core flatness | 0.02 mm |
| Forming length tolerance | ±0.1 mm |
| Forming width tolerance | ±0.1 mm |
| Forming thickness tolerance | ±0.1 mm |
V. Main Electrical & Standard Component Brands
| Component | Brand |
|---|---|
| Booster cylinder | Sentuo |
| Solenoid valve | Airtac |
| Power supply | Mean Well (Taiwan) |
| Timer / Counter | Bellmay |
| Safety light curtain | DeepVision |
| Pressure gauge | Airtac |
VI. Maintenance Method
-
Frequently wipe the equipment with a soft cloth soaked in alcohol to keep it clean.
-
Lubricate moving parts regularly to ensure smooth operation.
-
If the equipment is not used for a long period, clean moving components and apply anti-rust oil.
-
Regularly inspect screws, nuts, pins, and other fasteners to prevent loosening.
VII. Precautions
-
During operation, do not place hands or any body part inside moving or hazardous areas.
-
Only one operator should operate the equipment at a time.
-
Non-technical or unauthorized personnel are not allowed to disassemble the equipment.
