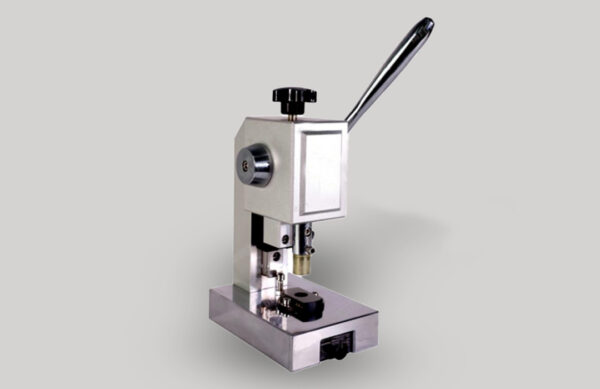

1. Product Description
This product is a patented device independently developed, specifically designed for punching processes. Equipped with dies of various specifications, it can punch holes or cut discs from thin film materials. With a compact and ingenious design, and easy die replacement, it is especially suitable for punching and cutting battery electrodes, current collectors, and separator films with thicknesses ranging from 0.005 mm to 0.5 mm.
2. Optional Dies
Die sizes can be customized from Φ3 mm to Φ24 mm according to customer requirements.
3. Main Features
-
The upper die adopts high-precision linear guide rails, ensuring high cutting precision and no burrs, sharp edges, or indentations.
-
Supports punching various battery electrode materials with thicknesses from 0.005 mm to 0.5 mm.
-
Compact size and easy operation; flexible and quick die replacement; can be operated conveniently even inside glove boxes with an inner diameter over Φ200 mm.
-
Exquisite and simple exterior design; easy to clean and maintain.
-
Made from corrosion-resistant aluminum alloy, ensuring no rust and a sleek appearance.
✅ Technical Parameters
| Product Name | Manual Disc Cutter |
|---|---|
| Punching Size | Optional Φ3 mm ~ Φ24 mm (customizable) |
| Punching Pressure | ≥300 Kg |
| Stroke | ≥25 mm |
| Applicable Materials | Battery electrode sheets with thickness 0.005~0.5 mm; also suitable for anti-static materials, ABS materials, waste discharge, etc. |
| Receiving Box | Included (for collecting punched discs) |
| Body Material | Aluminum alloy, corrosion-resistant, aesthetic |
| Dimensions (L × W × H) | 110 × 160 × 350 mm |
| Weight | 6 Kg |
