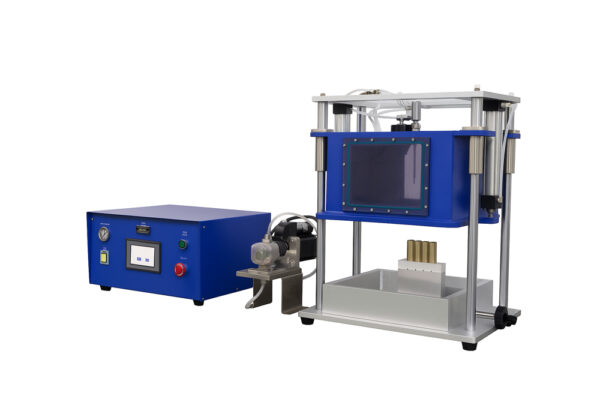

Model: XE–ZY65

Product Introduction

Suitable for the electrolyte injection and vacuum diffusion process of battery capacitors. It adopts vacuum first, then liquid injection and vacuum standing. The electrolyte has high precision, absorption consistency and high reliability.



Features:

* One machine includes electrolyte filling and diffusion functions;

* High measurement accuracy and repeatability;

* Multi-station with high efficiency, accurate precision, convenient and reliable operation.

* Filling electrolyte after vacuuming, high efficiency, accurate accuracy, convenient and reliable operation;

*Injection accuracy±0.5%, injection volume 0.2 ml ~ 200 ml;

*The entrance and exit are connected by chemical resistant hoses;

*Can be operated in a glove box or dry room;

*The appearance is exquisite and beautiful, and the performance is stable;

*PLC, touch screen operation, flexible parameters, high automation program;



Equipment Main Configuration

 Filling Workflow*Put the product into the vacuum chamber;*Press the start switch, press down on the transparent sealed upper cavity, so that the battery is in a sealed vacuum cavity;* Vacuum, after reaching the vacuum degree and the set time, the liquid will be injected automatically. After the filling of one product, the hand-operated worktable will switch to another product to inject the liquid, multi-function analogy.*Then the system will automatically degas still;*After degassing still, take out the product to complete.Remarks: The vacuuming time and degassing time can be set according to the situation.
Main Components of Equipment*Cylinder and solenoid valve, vacuum components: SMC/Taiwan Airtac*Guide slider: Taiwan Shangyin/Intime*PLC: Display and control*Touch screen: display control*Analog vacuum gauge: Panasonic*Motor: Lei SaiEnvironmental requirements*Ambient temperature: determined by the customer’s factory environment;*Power supply: 220V, 50HZ, voltage fluctuation range: +10%～-10%;*Compressed air: After drying, filtering and stabilizing: the outlet pressure is greater than 4.0kg/cm2; if it is placed in the glove box, the compressed gas used is the same as that in the glove box;*Vacuum source: vacuum pump 2 liters/sec, above -98KPa, or pipeline vacuum (above -98KPa);

Model XE-ZY65

Suitable for lithium battery products, cylindrical or pouch cell
Function Injection and Diffusion
Cylindrical Range Φ60, H100mm or less, according to the 18650 calculation standard with 4 stations, 4 notes at a time
Warranty One year limited warranty with lifetime support
Range of Capacity 0.2ml~200ml
Core Liquid Injection 0.2g~200g
Injection Accuracy ±0.5%
Exhalation Velocity 6ml/s adjustable
In and Out Pipe The liquid inlet pipe 6mm
Adjustable Stroke Maximum X-axis stroke 0~80mm (center)
Material Manufacture of stainless Steel 304 and 316 corrosion-resistant material in key parts
External Dimension L510mm×W400mm×H650mm
Power Supply AC220V/50Hz/0.5KW
Weight 90kg
