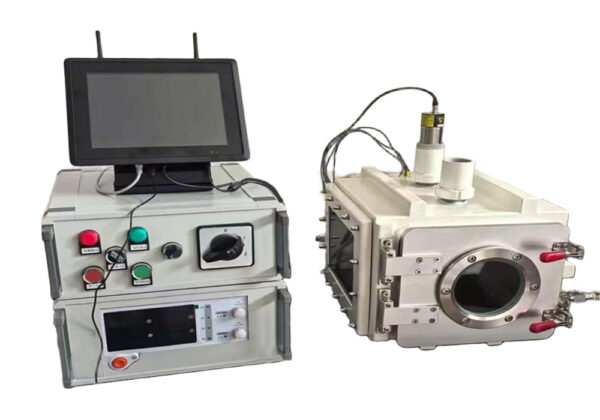

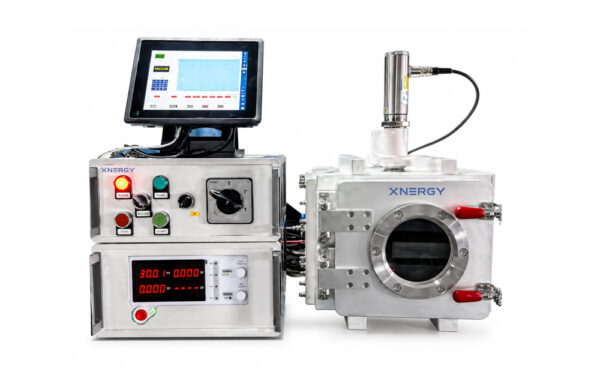

High-Temperature Joule Heating System for Laboratory Research
Need a bulk order? Request a competitive quote today!
High-Temperature Joule Heating System for Laboratory Research
Technical Specifications
| Item | Specification |
|---|---|
| Model | XN-1532E |
| Temperature Range | 150–3200°C |
| Temperature Accuracy | ±5% |
| Temperature Repeatability | ±3% |
| Vacuum Chamber | Stainless steel with observation window; Inner dimensions: 20 × 30 × 30 cm |
| DC Power Supply | 30V / 150A |
| Input Power | 220V / 50Hz |
| Rated Power | 4500 W |
| Heating Rate | Up to ≥1000°C / 100 ms |
| Control System | Manual / Automatic control; dual current switching; system operation control |
| Touchscreen Panel | Real-time display of temperature, current, voltage; remote control; data acquisition & storage |
| Remote Control Mode | Time / Max temperature adjustable; pulse temperature control; 6-stage segmented control; programmable ramp heating |
| Pulse Parameters | Minimum pulse width: 1 ms; Pulse count: 1–100 |
| Data Acquisition Cycle | Temperature, voltage, current collection (sampling frequency adjustable: 100–10 kHz) |
| Data Communication | RS485 + USB |
| Vacuum Gauge | -0.1 MPa |
| Vacuum Pump | Dual-stage rotary vane pump; Ultimate pressure: 6 × 10⁻² Pa; Speed: 1400 r/min |
| Gas Circuit | Reserved gas inlet/outlet tubes, valves, connectors |
| Working Atmosphere | Vacuum or protective gases (N₂, etc.) |
| High-Temperature Electrodes | Copper electrodes (2 pcs) |
| AI-Assisted Analysis | Supports XRD, BET, SAXS, electrochemical, temperature, energy, TEM data preprocessing; Supports SVM, RF, Neural Networks, Bayesian networks for data analysis and material electrochemical performance prediction |
| Dimensions & Weight | 100 × 80 × 60 cm (L × W × H); 60 kg |
