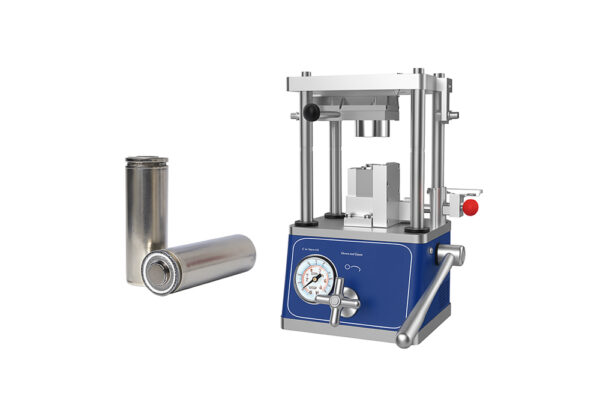

Hydraulic Battery Sealing Machine

Model：XE-CF650

1. XE-CF650 Hydraulic Cylindrical Cell Sealing Machine mainly used for the sample of lab battery materials’ research, which to make cylindrical battery. The research sealing of cylindrical capacitor can also be used in small batch trial production in factory.
   2.The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly. Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.
   3. It is mainly used for 14500 18650 21700 32650 cylindrical battery sealing process after grooving.

4. Included Mould: Standard 18650 Cylindrical battery sealing mould(1 set, 2 sealing). You can also choose other Cylindrical battery sealing mould.

Features

*Built-in safety overflow oil valve, the pressure can be adjusted according to needs, and the upper limit of the pressure can be set to prevent damage caused by excessive pressure, ensuring the safety of the machine.

*Built-in pressure gauge, can observe and accurately control the size of the sealing pressure.

*Using hydraulic drive, the pressure can reach 8T, and the battery seal has no vibration and no leakage.

*Specially designed hydraulic structure, labor-saving operation.

*Precision mold design ensures accurate and reliable sealing forming, solid steel structure design, stable and safe use.

*Small size, easy to operate, can be placed in a glove box for operation.

* Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding etc.

Specifications:
