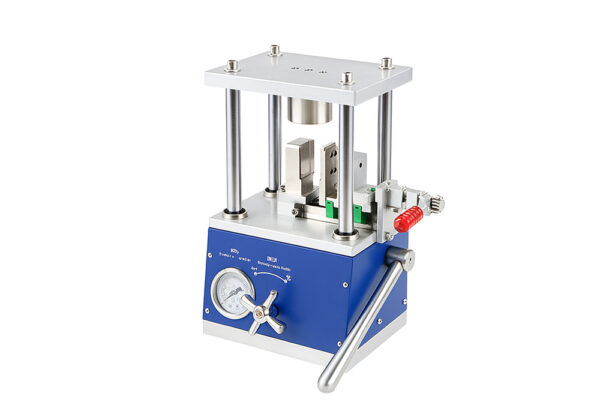

Hydraulic Cylindrical Cell Third Sealing Machine

Model：XE-DF650

XE-DF650 is mainly used for the third sealing of cylindrical batteries to make minor adjustments for the height and edges of the case. Standard with 18650 cylindrical battery third sealing die, other models of cylindrical battery sealing die are optional.

Features

* Flat sealing edge, good air tightness, high dimensional accuracy, high efficiency, excellent consistency.

* Embedded pressure gauge, can observe and accurately control the sealing pressure.

* Adopting hydraulic drive, the pressure can be up to 8T, no vibration and no liquid leakage in battery sealing.

* Specially designed hydraulic structure for labor-saving operation.

* Precise die design ensures accurate and reliable sealing and forming, solid steel structure design, steady and safe use.

* Small size, easy to operate, can be placed in the glove box operation.

* Nice appearance, easy maintenance and compact size, easy to operate, precise forming.



Specifications:



Model	Cylindrical Cell Third Sealing Machine XE-DF650
Sealing Die	Standard with 18650 cylindrical battery third sealing die, other models of cylindrical battery sealing die are optional
Hand-rocker Operating Strength	Less than 6kg
Pressure Gauge	Normal cylindrical cell sealing pressure gauge range is about 80- 100kg/cm2 . The pressure parameters of this machine have been adjusted before shipment. For special cases where higher pressures are required (maximum pressure 200kg/cm2 about 8 tonnes), please consult with the manufacturer before adjusting.
Material of Structural Components	High-strength chrome steel with environmental plating and spraying treatment will never rust.
Dimension	L235 * W190 * H350mm
Weight	25kg
