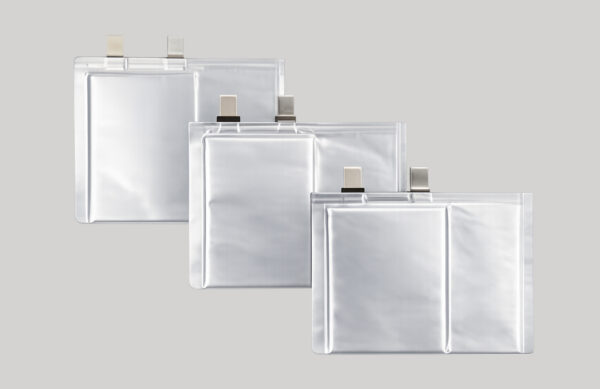

NCM90 Silicon-Carbon Anode Pouch Dry Pouch Cell (Multiple Specs)

Name: NCM90 / Silicon-Carbon Anode Pouch Dry Pouch Cell (Multiple Specs)

Cell Type: NCM90-700 Silicon-Carbon Pouch Dry Cell

Product Code: XN-NCM90-SiC

Description:

NCM90 / Silicon-Carbon Anode Pouch Dry Pouch Cell pairs high-nickel NCM90 (Ni90) cathode with a high-silicon-content silicon-carbon composite anode, delivering high energy density up to 360 Wh/kg in a fully assembled but unfilled (dry) pouch format. As a result, this dry cell is ideal for electrolyte filling experiments, advanced lithium battery R&D, and energy density benchmarking. The 23.5% silicon content in the anode provides 700 mAh/g specific capacity — significantly higher than conventional graphite — while validated cycling performance exceeds 640 cycles at > 90% capacity retention. Furthermore, multiple capacity grades (1 Ah / 2 Ah / 5 Ah / 14.5 Ah) and custom specifications are available to support varied research needs.

Application:

This dry pouch cell serves as a research platform for high-energy-density lithium battery development, including electrolyte formulation studies (the cell ships unfilled, allowing customers to inject their own electrolyte), high-nickel cathode performance evaluation, silicon-carbon anode degradation studies, and full-cell prototyping for next-generation 350+ Wh/kg battery systems. Furthermore, the standardized pouch format simplifies comparison with industry benchmarks.

Cell Specifications (1 Ah Standard Grade):

Cathode Specifications (NCM90):

Anode Specifications (Silicon-Carbon Composite):

Values measured by Xnergy. Typical values for reference; not guaranteed unless otherwise specified.

Available Capacity Grades:

Cycle Life Performance:

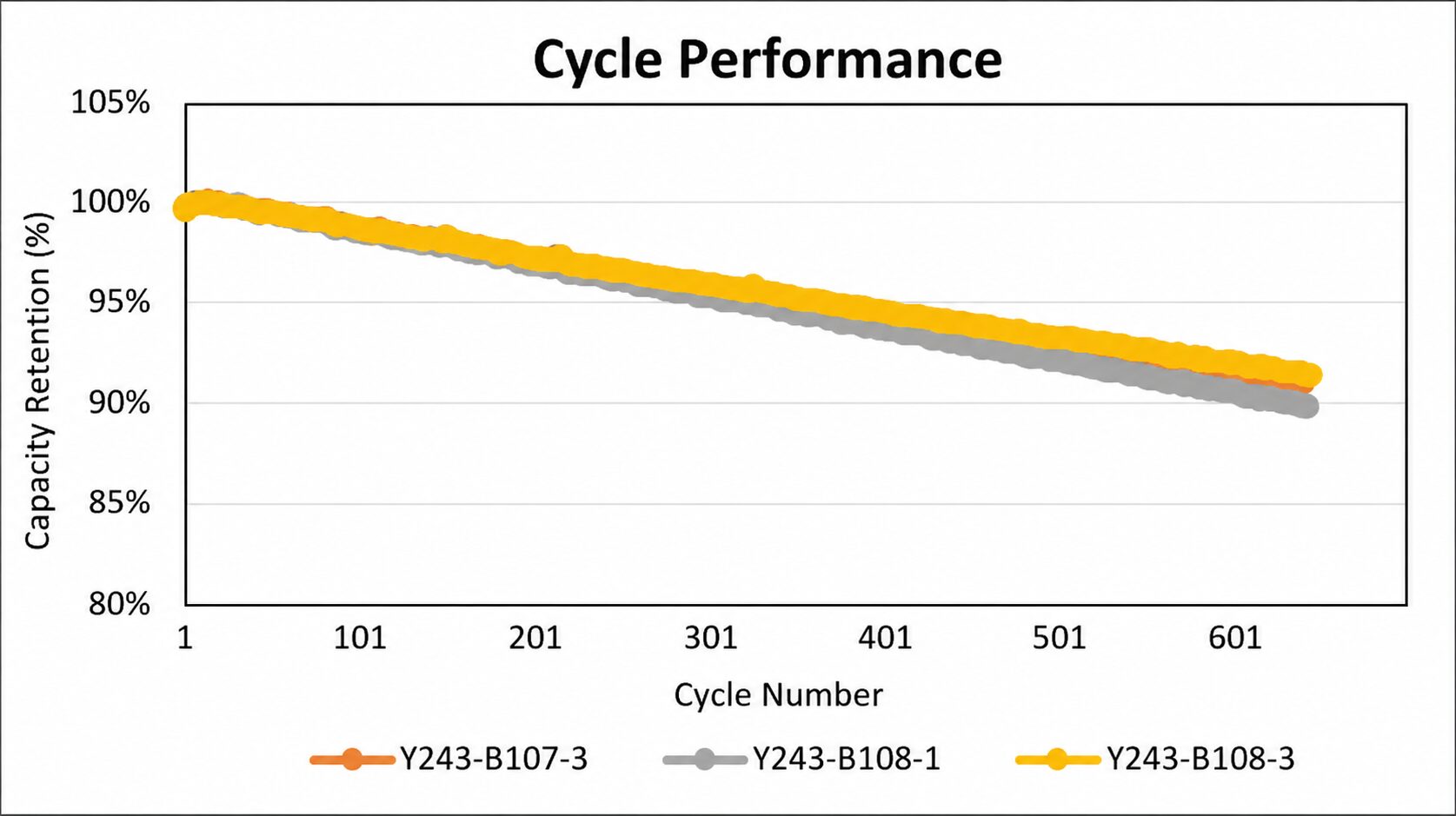

Cycle life performance of NCM90 / silicon-carbon pouch cells (3 sample lots: Y243-B107-3, Y243-B108-1, Y243-B108-3). All cells maintain > 90% capacity retention after 640+ cycles, demonstrating excellent cycling stability for high-silicon anode systems.

Characteristics:

High-energy-density chemistry (up to 360 Wh/kg)

The NCM90 cathode (200 mAh/g) paired with high-silicon (23.5% Si) anode (700 mAh/g) enables cell-level energy density up to 360 Wh/kg in the 14.5 Ah grade — significantly above conventional NCM811/graphite designs. As a result, this combination supports research targeting next-generation EV and aviation battery requirements.

Validated 640+ cycle life

Despite the high silicon content (which typically challenges cycle life), three independent lots maintain > 90% capacity retention through 640+ cycles. Therefore, customers receive a research platform with both high energy density and proven cycling stability — a combination rarely available together in high-Si systems.

Dry (unfilled) pouch design for electrolyte studies

The cell ships fully assembled but without electrolyte. Consequently, customers can inject their own electrolyte formulations to study electrolyte effects on high-Ni / high-Si chemistry — a critical capability for advanced battery R&D programs.

Multiple capacity grades + custom specifications

Standard grades cover 1 Ah / 2 Ah / 5 Ah / 14.5 Ah. Furthermore, custom specifications including alternative separators, electrode dimensions, and capacity targets are available on request to match specific research requirements.

Standardized stacked pouch architecture

Stacked-electrode (laminated) construction with standardized electrolyte filling protocol (3–4 g/Ah), formation (0.1C to 4.2 V), and aging (45 °C × 12 h on fixture, then 24 h room temperature). Therefore, results are reproducible across labs and comparable with industry benchmarks.

Recommended Activation Protocol:

1. Inject electrolyte at 3–4 g/Ah ratio. 2. Vacuum-seal the pouch under inert atmosphere. 3. Aging: hold at 45 °C on fixture for 12 h. 4. Formation: charge at 0.1C to 4.2 V. 5. Room-temperature aging: rest for 24 h before subsequent cycling tests.

Packaging & Storage:

Cells ship vacuum-sealed under inert atmosphere in moisture-barrier packaging. Therefore, customers should store sealed in a cool, dry environment, protected from moisture. Open packaging in a dry-room or glovebox environment immediately before electrolyte filling.

Safety:

For research and industrial use only. Activated lithium-ion cells contain flammable electrolyte and high-energy electrode materials. Wear PPE during cell handling and electrolyte filling. Never short-circuit, overcharge, overdischarge, puncture, or expose cells to high temperatures (> 60 °C). Refer to SDS for complete safety information.

Note: Values listed above are typical and for reference only. Performance may vary depending on electrolyte choice, formation protocol, cycling conditions, and test environment. See also other dry pouch cells in our catalog: NCM811 / Silicon-Carbon, NCM811 / Lithium Metal, NCM622 / Artificial Graphite, NCM622 / Lithium Metal, NCM613 / Artificial Graphite, NCM523 / Lithium Metal, LCO / Artificial Graphite, LCO / Lithium Metal, LFP / Artificial Graphite, LFP / Lithium Metal, LFP Anode-Free, and LMFP / Artificial Graphite. Browse the full Dry Pouch Cell category for all configurations.
