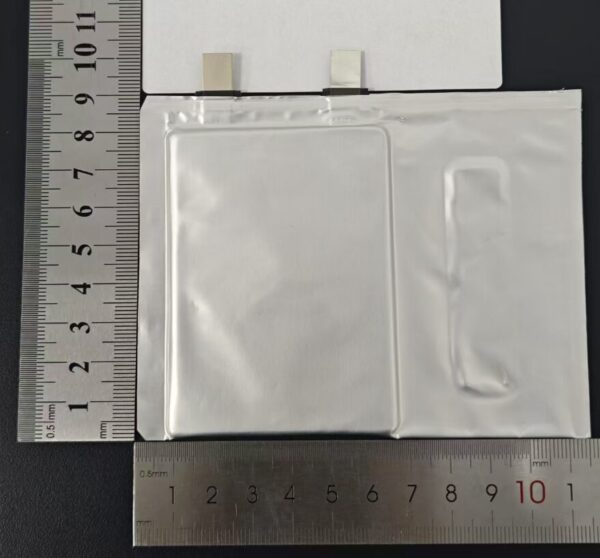

LFP-Artificial Graphite Anode Dry Pouch Cell(Multiple Specs)

Name: LFP / Artificial Graphite Anode Pouch Dry Pouch Cell (Multiple Specs)

Cell Type: LFP-Graphite Pouch Dry Cell

Product Code: XN-LFP-Gr

Description:

LFP / Artificial Graphite Anode Pouch Dry Pouch Cell pairs lithium iron phosphate (LFP) cathode with high-capacity artificial graphite anode in a fully assembled but unfilled (dry) pouch format. As a result, this configuration delivers the gold-standard LFP/graphite chemistry — the most extensively deployed lithium-ion architecture in stationary energy storage and electric mobility — combined with the dry pouch format that allows custom electrolyte injection. Validated cycling demonstrates 92% capacity retention at 1100+ cycles with excellent rate capability up to 5C (85%+ retention). Furthermore, two-sample reproducibility confirms consistent batch-to-batch performance for reliable research benchmarking.

Application:

This dry pouch cell serves as a versatile research platform for LFP battery development, including electrolyte formulation studies (the cell ships unfilled, allowing customers to inject their own electrolyte), additive screening for LFP/graphite cycle life extension, full-cell prototyping for stationary energy storage, grid-scale storage, electric two-wheelers, light commercial vehicles, and academic studies of LFP/graphite electrochemistry under high-rate cycling.

Cell Specifications (1 Ah Standard Grade):

Cathode Specifications (LFP):

Anode Specifications (Artificial Graphite):

Values measured by Xnergy. Typical values for reference; not guaranteed unless otherwise specified.

Available Capacity Grades:

Performance Data — Rate & Cycle Validation (Two-Sample Reproducibility):

Comprehensive performance validation across two independent cell samples (LFP-1 and LFP-2), demonstrating excellent batch-to-batch reproducibility. Top: Rate capability from 0.2C to 5C, with capacity retention above 85% even at 5C. Bottom: Cycling performance over 1100+ cycles with 92% capacity retention.

Cycle Life Performance — Detailed View:

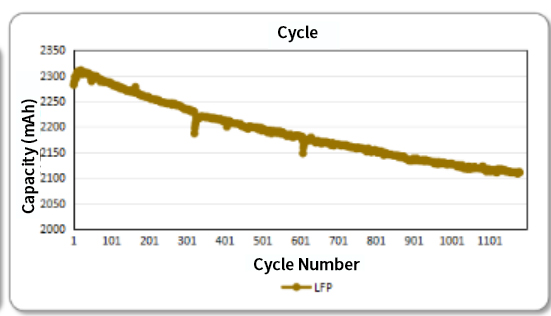

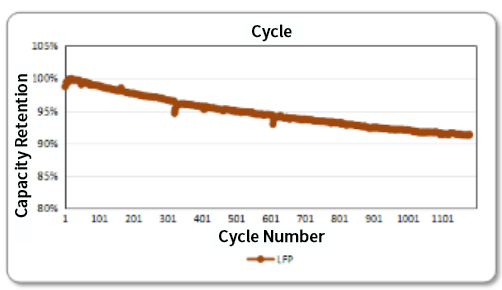

Detailed cycle life data over 1100+ cycles. Top: Absolute discharge capacity declines from ~2280 mAh to ~2110 mAh. Bottom: Capacity retention from 100% to 92% — demonstrating LFP/graphite’s renowned long-cycle stability.

Characteristics:

Industry-standard 92% retention at 1100+ cycles

Validated cycle testing demonstrates 92% capacity retention through 1100+ cycles, characteristic of mature LFP/graphite chemistry. As a result, this cell delivers a reliable benchmark for long-life battery research, with rich published reference data for additive screening and electrolyte comparison studies.

Excellent rate capability (up to 5C)

The cell maintains 85%+ capacity retention at 5C discharge rate, with smooth rate response from 0.2C through 4C. Therefore, this configuration is well-suited for high-power applications including grid frequency regulation, electric tools, and rapid-discharge stationary storage.

Two-sample reproducibility validated

Performance data from two independent cell samples (LFP-1 and LFP-2) shows nearly perfect overlap across both rate and cycle tests. Consequently, customers receive predictable, reproducible cell behavior — a critical requirement for batch comparison studies and standardized R&D protocols.

Stepped formation protocol for stable SEI

The recommended formation uses a multi-step current protocol (0.05C → 0.1C across two voltage stages) rather than a single-step charge. Consequently, this gradual approach builds a stable SEI on graphite, reducing first-cycle losses and improving long-term cycling stability.

Dry (unfilled) pouch design for electrolyte studies

The cell ships fully assembled but without electrolyte. Therefore, customers can inject their own electrolyte formulations to study high-temperature additives, fast-charging electrolytes, and low-temperature performance — critical capabilities for advancing LFP/graphite chemistry beyond standard limits.

Multiple capacity grades + custom specifications

Standard grades cover 1 Ah / 2 Ah. Furthermore, custom capacities, alternative separators, and electrode dimensions are available on request to match specific research requirements.

Recommended Activation Protocol:

1. Inject electrolyte at 5–6 g per cell. 2. Vacuum-seal the pouch under inert atmosphere. 3. Aging: hold at room temperature for 24 h. 4. Pre-formation rest: 5 minutes. 5. Stage 1: charge at 0.05C for 60 minutes, cutoff 3.4 V. 6. Rest 3 minutes. 7. Stage 2: charge at 0.1C for 300 minutes, cutoff 3.7 V. 8. Final aging: hold at room temperature for 24 h before subsequent cycling tests.

Packaging & Storage:

Cells ship vacuum-sealed under inert atmosphere in moisture-barrier packaging. Therefore, customers should store sealed in a cool, dry environment, protected from moisture. Open packaging in a dry-room or glovebox environment immediately before electrolyte filling.

Safety:

For research and industrial use only. Activated lithium-ion cells contain flammable electrolyte and high-energy electrode materials. Wear PPE during cell handling and electrolyte filling. Never short-circuit, overcharge, overdischarge, puncture, or expose cells to high temperatures (> 60 °C). Refer to SDS for complete safety information.

Note: Values listed above are typical and for reference only. Performance may vary depending on electrolyte choice, formation protocol, cycling conditions, and test environment. See also other dry pouch cells in our catalog: LFP / Lithium Metal, LFP Anode-Free, LMFP / Artificial Graphite, LCO / Artificial Graphite, LCO / Lithium Metal, NCM811 / Silicon-Carbon, NCM811 / Lithium Metal, NCM811 / Artificial Graphite, NCM811 Anode-Free, NCM90 / Silicon-Carbon, NCM90 / Lithium Metal, NCM622 / Artificial Graphite, NCM622 / Lithium Metal, NCM613 / Artificial Graphite, and NCM523 / Lithium Metal. Browse the full Dry Pouch Cell category for all configurations.
