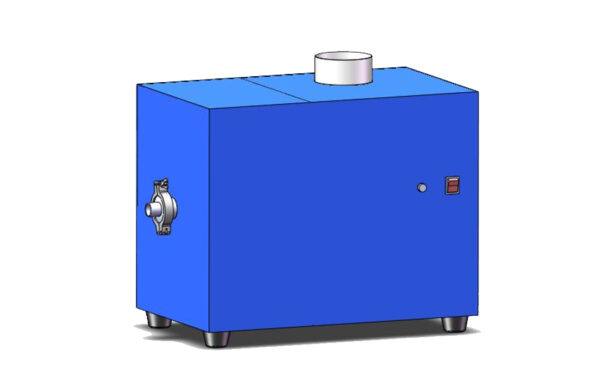

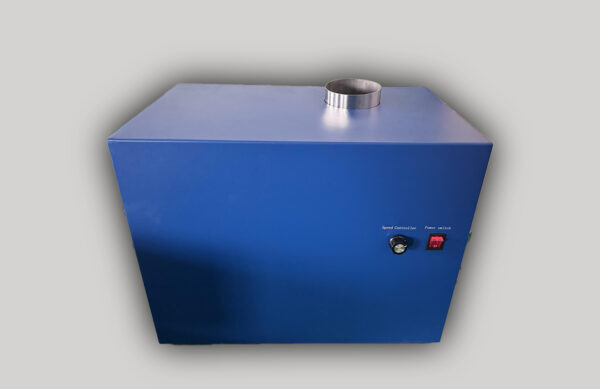

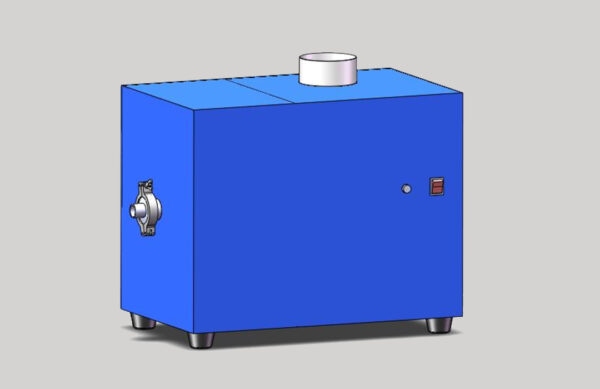

Model: XN-NMP-H1
This equipment is an NMP solvent treatment system designed for Film Coating Machine with Dryer. It is compatible with XNERGY products: XN-TMH250, XN-TMH300, and XN-TMH400.
Features：
* Simple structure and easy operation.
* Independent activated carbon adsorption box for quick replacement.
* Clamped air inlet and outlet ports for fast pipeline connection.
* Small footprint, suitable for laboratory use.
| Model | NMP Solvent Processing System XN-NMP-H1 |
|---|---|
| Air Inlet Diameter | Ø25 mm |
| Air Outlet Diameter | Ø100 mm |
| Air Volume | Max. 870 m³/h |
| Activated Carbon Specification | 300 × 315 × 15 mm |
| Number of Activated Carbon Units | 2 |
| Power Supply | AC110/220V ±10%, 50/60Hz (compatible with US voltage) |
| Power | 550 W |
| Dimensions (L × W × H) | 580 × 320 × 480 mm |
| Weight | Approx. 15 kg |
Maintenance Methods and Precautions
- Regularly wipe off dirt from guide posts and other moving parts to keep them clean. Apply lubricating oil to ensure smooth movement.
- Periodically check screws, nuts, pins, and other fasteners to prevent loosening and avoid equipment quality issues or personal injury.
- During operation, never place hands or other body parts near the dangerous area of the fan to prevent injury. Only one operator should operate the equipment at a time to avoid accidental harm.
