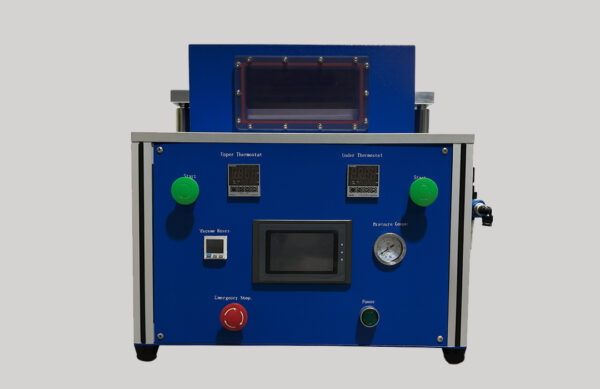

XN-BFZ200 vacuum sealer is used for pouch cell final vacuum sealing after electrolyte injection and cell formation, it is with auto piercing function to de-gassing the cell and do a secondary sealing under vacuum condition. It is touch screen operation high automation.
Features:
- With piercing needle, piercing function can be completed automatically.
- Sealing blade is made from copper with good heat conduction.
- Upper and lower sealing blade sealing pressure can be adjusted.
- Upper and lower sealing blade temperature be controlled separated and settable, digital display by thermostat.
- The lid can go down only by pressing the 2 start buttons at the same time to avoid hands get injured.
- Touch screen operation, high automation.
- Sealing time can be set.
- Through perspective window to observe it during working.
- The lid will open automatically when it finished sealing.

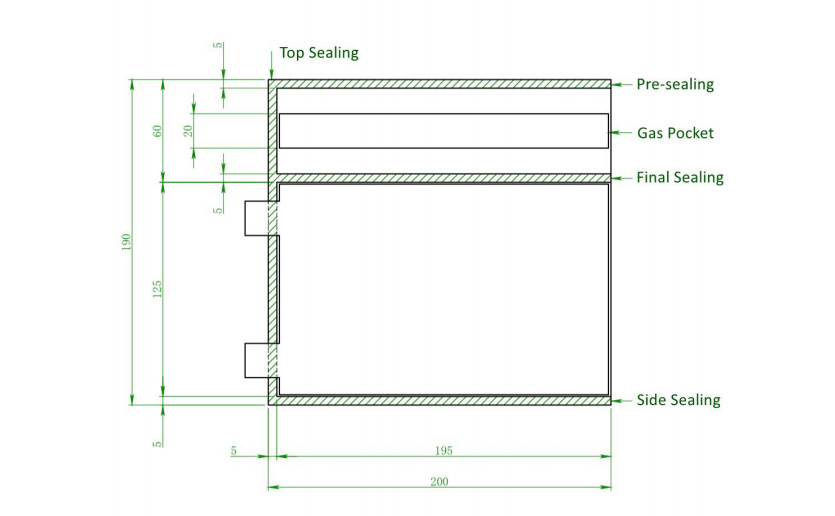

Max Battery Size:

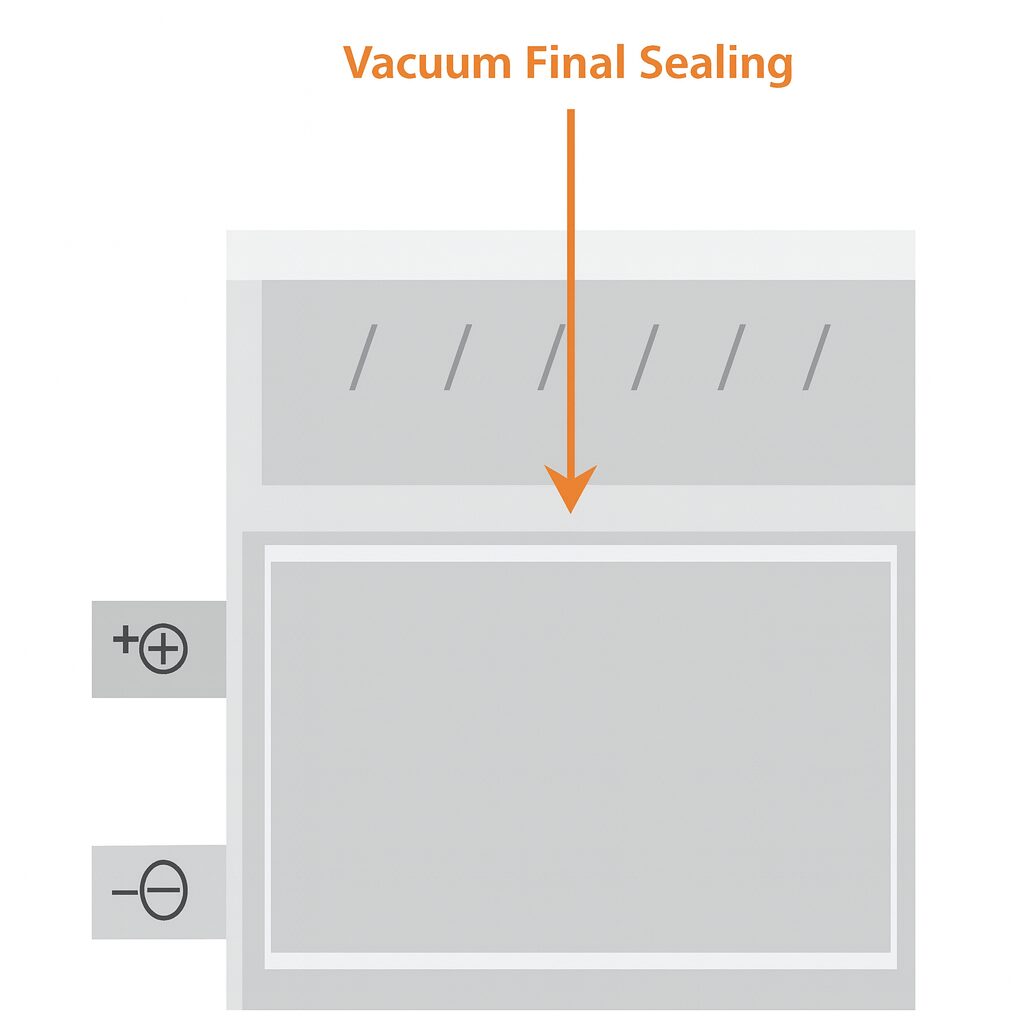

Working Process:
Final Sealing
| Category | Specifications |
|---|---|
| Model | Pouch Cell Final Sealing Machine XN-BFZ200 |
| Sealing Head Temperature | RT – 250 °C adjustable |
| Temperature Control Precision | ±1.5 °C |
| Heat Sealing Pressure | 0 – 7 kg/cm² adjustable |
| Heat Sealing Time | 0 – 99 s adjustable |
| Sealing Width | 5 mm adjustable |
| Vacuum Degree | -90 kPa to 0 adjustable (vacuum pump optional) |
| Voltage | AC 110–120 V, 60 Hz (Standard US Power) |
| Power | 300 W heating pipe, approx. 0.6 kW when heating |
| Compressed Air Source | 0.5 – 0.7 MPa |
| Machine Size | L 500 × W 500 × H 700 mm |
| Head Parallelism | With triple carbonless paper, head pressure at 0.6 MPa, temperature 200 °C when sealing |
| Air Consumption | ~0.2 L compressed gas per cycle |
| Pneumatic Working Speed | ≥ 180 cycles/h |
| Dimension | 515 × 350 × 505 mm |
| Weight | 56 kg |
