Model: N05
Product Description

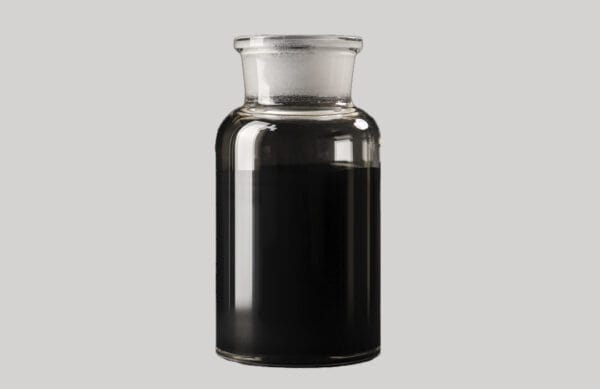

Thin-walled carbon nanotube conductive liquid N05 is a black liquid. Characterized by thin-walled carbon nanotubes, it boasts excellent electrical conductivity and good fluidity. With a smooth and homogeneous appearance, the carbon nanotubes are evenly dispersed, making it an ideal conductive additive for various applications.
Physical and Chemical Indexes
| Item | Control Index | Detection method | ||
| Specification Items |
Inner and Outer Packaging |
Packaging is well-sealed without damage or leakage |
Visual inspection | |
| Appearance | Black powder | Visual inspection | ||
| Moisture(%) | ≤0.8 | Differential thermal method |
||
| Specific Surface Area (m²/g) |
60～80 | BET nitrogen
adsorption method |
||
| Ash Content (%) |
<0.1 | lgnition method | ||
| Apparent Density(g/cm³) |
0.04~0.08 | Measuring cylinder weighing method |
||
| Impurity Elements (ppm) |
Fe | ≤20 | Atomic absorption | |
| Co | ≤5 | |||
| Ni | ≤5 | |||
| Cu | ≤5 | |||
| Cr | ≤5 | |||
| Zn | ≤5 | |||
| Magnetic Metal | ≤5 | |||
| Shelf Life | In Sealed State | 24months | ||
Handling and Storage
The storage environment should be controlled between 5℃ and 45℃, with the humidity kept below 90%, and direct sunlight should be avoided. When stored in the specified environment and the package remains unopened, the shelf life of the conductive slurry is 6 months from the production date.
