Celgard 3501 Polypropylene Battery Separator Film

SKU: 3501

Celgard 3501 Polypropylene Battery Separator Film is a PP separator film with documented 25 μm thickness, 55% porosity, 200 s air permeability and 200–325 gf puncture strength.

Need a custom separator format or roll size? Request a competitive quote today! Please specify the required dimensions and application.

Celgard 3501 Polypropylene Battery Separator Film

Product Type: Polypropylene Battery Separator Film
Product Code: 3501
Brand: Celgard

Product Introduction

Celgard 3501 is a polypropylene separator film for battery research. The supplied technical data documents its thickness, air permeability, porosity, shrinkage, tensile strength, puncture strength and wettability.

Core Features

  • Polypropylene separator-film construction
  • Documented thickness of 25 μm
  • Documented porosity of 55% and air permeability of 200 s
  • Documented puncture-strength range of 200–325 gf
  • Documented MD and TD mechanical-property ranges

Technical Specifications

Parameter Specification
Product Code 3501
Brand Celgard
Material PP
Thickness 25 μm
Air Permeability 200 s
Porosity 55%
TD Shrinkage 0%
MD Shrinkage 1.1–5.0%
TD Tensile Strength 80–130 kg/cm²
MD Tensile Strength 770–1170 kg/cm²
Puncture Strength 200–325 gf
Wettability 30 s

Applications

  • Lithium-battery separator research
  • Sodium-battery separator research
  • Separator characterization and cell prototyping

Note: Handle the separator with clean tweezers, inspect the surface before assembly and store it in a dry, clean environment. Browse the Battery Separators category for related separator materials.

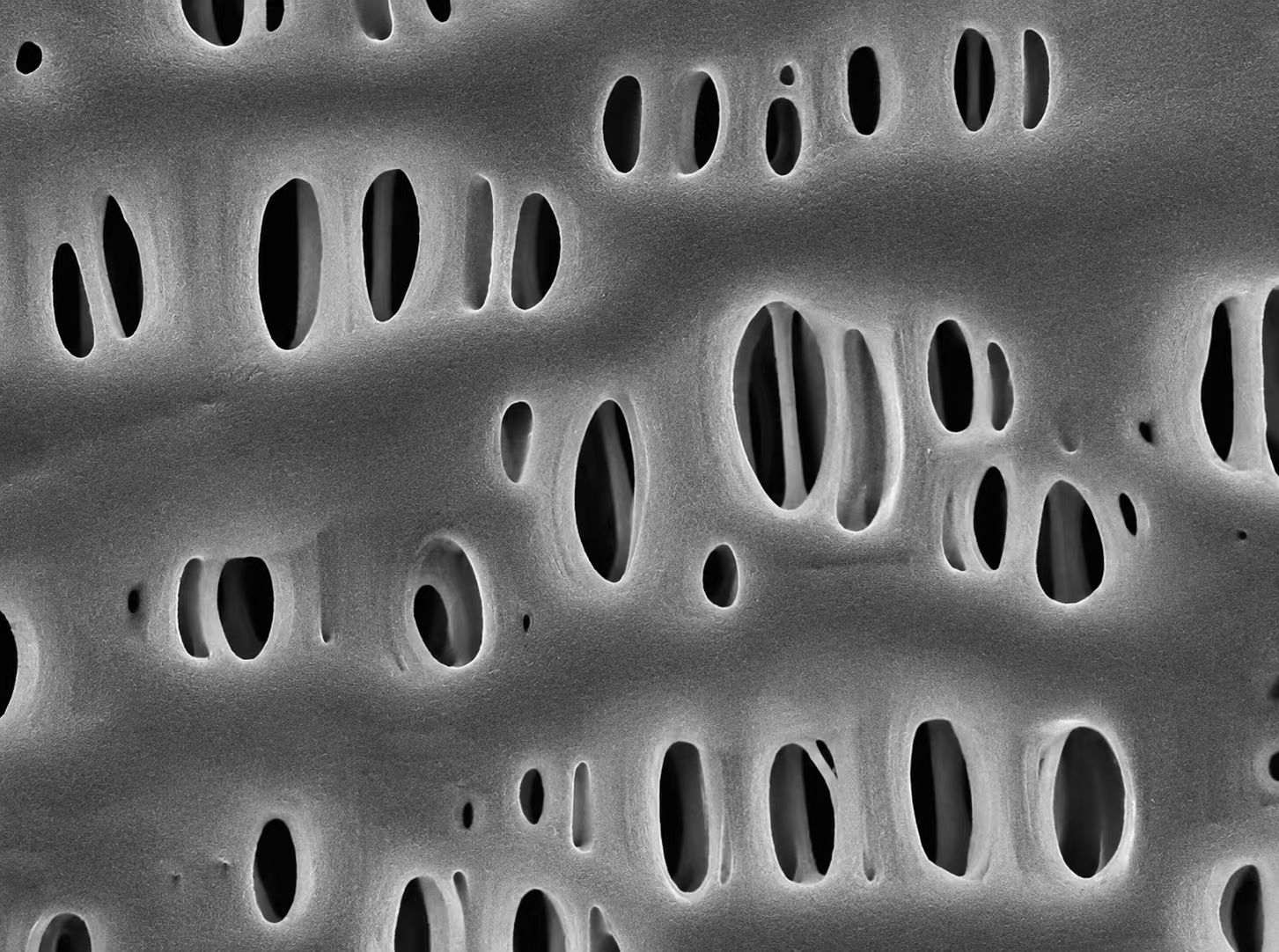

Celgard 3501 polypropylene battery separator film SEM microstructure
