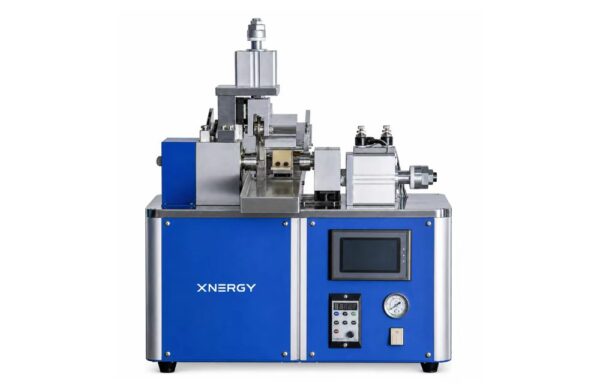

Automatic Cylindrical Cell Grooving Machine XN-AGMC-18
SKU: XN-AGMC-18
Automatic Cylindrical Cell Grooving Machine XN-AGMC-18 automatically feeds, grooves and unloads cylindrical steel cell cans for efficient, consistent processing. Standard tooling supports 18650-series cells, while corresponding tooling can be used for 21700, 26650 and other cylindrical formats. The documented groove depth is adjustable from 1.0 to 3.0 mm, with ±0.1 mm processing accuracy and a capacity of 6 pcs/min.
Need a bulk order? Request a competitive quote today!
Automatic Cylindrical Cell Grooving Machine XN-AGMC-18
Equipment Type: Automatic Cylindrical Cell Grooving Machine
Product Code: XN-AGMC-18
Brand: Xnergy
Product Introduction
The XN-AGMC-18 is designed for uniform automatic grooving of cylindrical steel cell cans. Automatic feeding and unloading reduce manual handling, while the adjustable grooving structure supports repeatable groove dimensions for cylindrical battery assembly.
Core Features
- Automatic feeding, grooving and unloading
- Adjustable groove dimensions with stable processing accuracy
- Standard 18650-series tooling
- Compatible with 21700, 26650 and other formats when corresponding tooling is installed
- PLC control with touchscreen parameter setting
- Compact machine structure and straightforward operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | XN-AGMC-18 |
| Machine Type | Automatic cylindrical cell grooving machine |
| Standard Tooling | 18650-series cylindrical cells |
| Compatible Cell Formats | 18650, 21700 and 26650 with corresponding tooling; other formats optional |
| Adjustable Groove Depth | 1.0–3.0 mm |
| Groove Width | 1.1–1.5 mm, determined by grooving-wheel thickness |
| Processing Accuracy | ±0.1 mm |
| Grooving-Wheel Service Life | More than 3,000,000 cycles |
| Production Capacity | 6 pcs/min |
| Electrical Standard | Configured to local electrical standards |
| Rated Power | 0.2 kW |
| Compressed Air | 0.5–0.7 MPa |
| Machine Dimensions | 550 × 600 × 650 mm |
| Net Weight | 50 kg |
| Control System | PLC with touchscreen interface |
Applications
- 18650 cylindrical cell can grooving
- 21700 and 26650 cylindrical cell can grooving with corresponding tooling
- Cylindrical battery laboratory assembly
- Cylindrical cell process development and small-batch production
Note: Standard tooling is specified for 18650-series cells. Other cylindrical formats require corresponding optional or additional tooling. Confirm the required cell format and groove dimensions before ordering.
