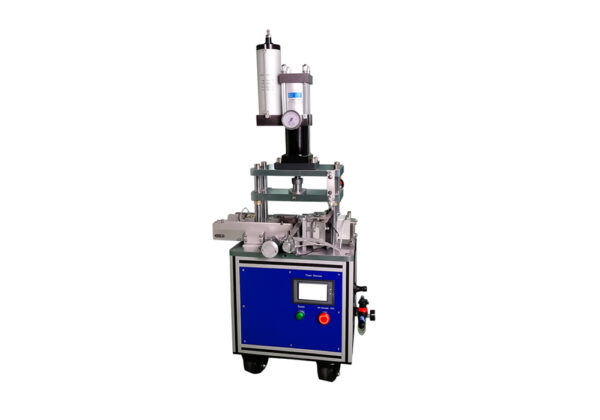

Automatic Sealing Machine

Model：XE-ZDFK700

The automatic cylindrical battery sealing machine is an automated equipment specially used for the production of cylindrical lithium-ion batteries, nickel-metal hydride batteries and other batteries. The automatic cylindrical battery sealing machine is mainly used for the sealing process of the battery to ensure the sealing and safety of the battery. It is suitable for cylindrical batteries of various specifications, such as 18650, 21700, 26650, etc. The equipment adopts advanced control system and precise mechanical structure to ensure the efficiency, stability and consistency of the sealing process.

Features

(1)  PLC touch screen operation, each parameter is easy to set, with a high degree of automation.

(2) After three times sealing, the sealing edge is flat, the airtightness is good, the dimensional accuracy is high, the efficiency is high, and the consistency is good.

(3) Precise mold design ensures accurate and reliable sealing molding, and solid steel structure design ensures stable and safe use.

(4) This sealing machine is suitable for various types of cylindrical batteries such as 18650, 21700, 26650, etc. The sealing process of other cylindrical cells can be performed by changing the sealing mold.

(5) Beautiful appearance and easy maintenance. It has the advantages of small size, convenient operation and precise molding.



Specifications:



Model	Automatic Sealing Machine for Cylindrical Cell XE-ZDFK700
Sealing mold	Standard 18650 cells assembly mold, molds for other battery types are optional
Sealing pressure	Max.3000Kg
Precision	±0.1mm
Mold life	>3 million times
Production capacity	6PCS/min
Voltage	220v/50Hz
power	0.5KW
Air Source	0.5MPa～0.7MPa
Dimension	L550*W400*H1250mm
Weight	205kg
Three times sealing



 Maintenance methods and precautions



Maintenance method

1. Frequently wipe the dirt on the moving parts of the machine, keep it clean, and add lubricating oil to make the machine run smoothly.
2. If the sealing machine is not used for a long time, the sealing mold needs to be cleaned and oiled to keep the molding surface clean and smooth.
3. Regularly check the screws, nuts, pins and other fasteners on each part of the machine to prevent loosening and prevent quality accidents and safety accidents of the sealing machine.



Precautions

1. When the equipment is running, it is forbidden to put your hands into the active area of the mold to avoid hurting your hands.
2. Regularly check whether there are foreign objects in the forming mold.
3. It is forbidden to hit the mold with hard objects.
4. Regularly check whether the sensors in each part are loose.
