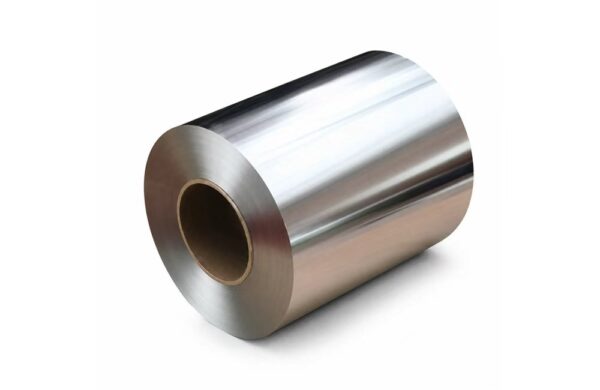

Battery-Grade Aluminum Foil Current Collector XN-BAF

Name: Battery-Grade Aluminum Foil Current Collector XN-BAF
Material Type: Battery-Grade Aluminum Foil Current Collector
Product Code: XN-BAF
Brand: Xnergy

Product Introduction:

XN-BAF is an uncoated, battery-grade aluminum foil designed for use as a cathode current collector in lithium-ion battery electrode manufacturing and laboratory research. Multiple thicknesses from 9 to 20 μm are available, and the roll width can be customized to suit coating, slitting, and cell-development workflows.

Key Features:

High-purity aluminum composition
9, 10, 12, 14, 16, and 20 μm thickness options
Customizable roll width
76 ± 1 mm core inner diameter
170–210 MPa tensile strength
Suitable for cathode coating and electrode fabrication

Technical Specifications:

Application Areas:

Lithium-ion cathode current collection
Cathode slurry coating trials
Electrode slitting and cell prototyping
Battery materials research and pilot-line development

Note: Width is customizable. The supplied areal-density figure is a reference value and should be confirmed together with the selected thickness and width before order placement. Explore the Aluminum Foil category for other current-collector surface treatments and formats. Related products: Carbon-Coated Aluminum Foil for Lithium-Ion Cathodes (1 m, Multiple Specs), Aluminum Foil, Conductive Primer Coated Aluminum Foil.
