Model：XE-CK650

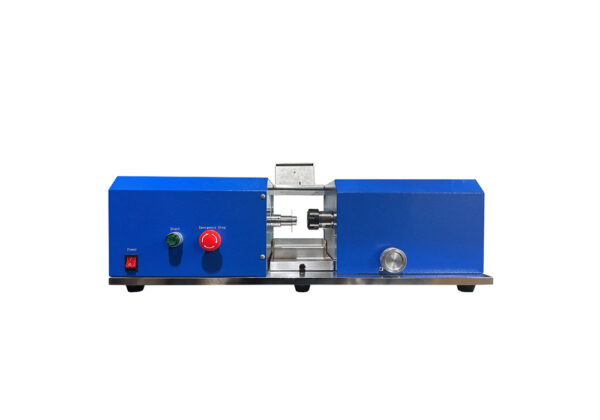

The cylindrical cell disassembling machine is mainly used in laboratories for removing the casing of 18650 sample cells after sealing, allowing for further research and validation. Equipped with different sizes of molds, it can disassemble various models of cylindrical lithium batteries (such as 18650, 26650). The entire machine is safe to operate, compact in design, and offers flexible and convenient use.
Features
* Capable of disassembling various cylindrical cells in the 18-series and 26-series specifications.
* High disassembly precision without damaging the internal cell during casing removal.
* Easy to operate, safe and reliable, with an attractive appearance.
Specifications:
| Model | Manual Disassembling Machine For Cylinder Cell XE-CK650 |
| Source voltage | AC110V/220V, 50/60HZ customized |
| Power | 200W |
| Disassembling Die | Standard die for 18650 (26650 is optional) |
| Motor Speed | 1000rpm |
| Die Rotating Speed | 320rpm |
| Blade Material | Tungsten steel |
| Micrometer Scale Accuracy | 0.05mm |
| Dimension | 550×250×220mm |
| Weight | 20kg |
