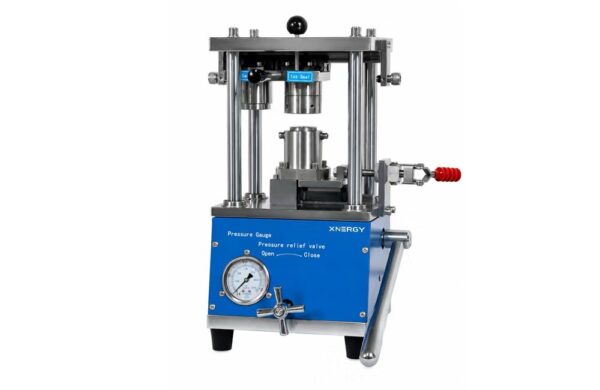

Manual Hydraulic Cylindrical Cell Sealing Machine XN-SMC-18
SKU: XN-SMC-18
Manual Hydraulic Cylindrical Cell Sealing Machine XN-SMC-18 is designed for research sealing of cylindrical batteries and cylindrical capacitors, as well as small-batch trial production. It uses hydraulic drive and two-stage sealing, with one 18650 sealing die set supplied as standard. The documented normal pressure-gauge reading is approximately 60–80 kg/cm².
Need a bulk order? Request a competitive quote today!
Manual Hydraulic Cylindrical Cell Sealing Machine XN-SMC-18
Equipment Type: Manual Hydraulic Cylindrical Cell Sealing Machine
Product Code: XN-SMC-18
Brand: Xnergy
Product Introduction
The XN-SMC-18 is a compact hydraulic sealing machine for laboratory research and small-batch trial production of cylindrical batteries and cylindrical capacitors. The two-stage sealing process is designed to produce flat sealing edges with good air tightness, dimensional accuracy and consistency. A built-in pressure gauge allows the sealing pressure to be observed and controlled.
Core Features
- Two-stage sealing for flat edges, good air tightness and dimensional consistency
- Hydraulic drive provides high pressure without sealing vibration or leakage
- Special hydraulic structure reduces the required operating effort
- Built-in pressure gauge for pressure observation and control
- Precision die design supports accurate and reliable seal forming
- Rigid steel structure supports stable and safe operation
- Compact form factor suitable for operation inside a glove box
- Convenient operation and straightforward maintenance
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | XN-SMC-18 |
| Machine Type | Manual hydraulic cylindrical cell sealing machine |
| Standard Sealing Tooling | One 18650 cylindrical cell sealing die set |
| Sealing Process | Two-stage sealing |
| Optional Tooling | Other cylindrical cell sealing dies available |
| Hand-Lever Operating Force | Less than 6 kg |
| Normal Pressure-Gauge Reading | Approximately 60–80 kg/cm² |
| Maximum Pressure | 200 kg/cm²; consult before adjustment |
| Die Material | Imported die material |
| Structural Material | High-strength chrome steel with environmentally friendly electroplated and spray-coated surfaces |
| Electrical Standard | Configured to local electrical standards |
| Dimensions | 285 × 200 × 450 mm |
| Weight | 37.5 kg |
Applications
- Laboratory cylindrical battery sealing
- Cylindrical capacitor sealing
- 18650 cylindrical cell sealing with the standard tooling
- Small-batch cylindrical cell trial production
- Glove-box battery assembly workflows
Note: One 18650 cylindrical cell sealing die set is included as the standard configuration. Other cylindrical cell sealing dies are optional. The normal pressure-gauge reading is approximately 60–80 kg/cm². The documented maximum pressure is 200 kg/cm²; consult before making any pressure adjustment for special requirements.
For the preceding cylindrical-can preparation step, see the XN-GMCL-18 Vertical Cylindrical Cell Grooving Machine. For automated sealing, see the XN-ASMC-18 Split-Type Automatic Cylindrical Cell Sealing Machine. Browse Cylindrical Cell Assembly and Cylindrical Cell Lab Equipment for related equipment.
