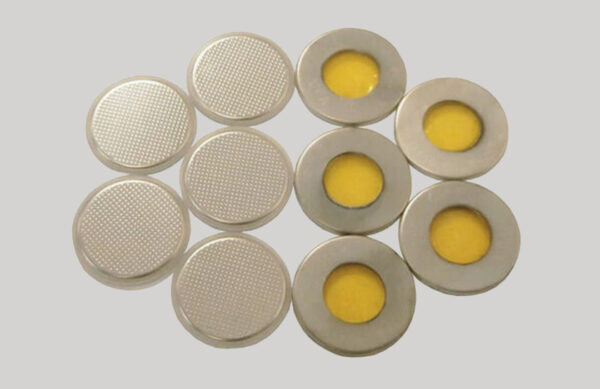

CR2032 Kapton-Window Cell Case for In-Situ X-Ray (10 mm) · 5 set/pack-CR2032KAP

EQ-CR2032-Kapton are special CR-2032 coin cell cases with 10mm Kapton windows (5 set/pack). The window is designed for in-situ X-Ray analysis of battery material phase variations during charging and discharging.

·5 set of CR2032 casing per package
·Kapton window for X-Ray beam penetration.
·PP (Polypropylene) sealing O-ring.

Specifications
Kapton window thickness	0.18mm
Coating	The positive side of the casing is coated with aluminum
Al coating thickness	< 0.01mm

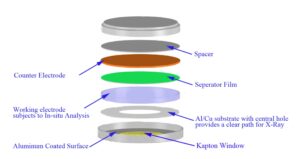

Cell Assembling Structure & Instruction Manual:

Application note

In order to reduce X-ray photons loss and get high resolution of X-ray signal for battery, please use carbon-based substrate as current collector instead of Al or Cu foil. You may use lab press and dry pressing die below to prepare an electrode pellet instead of using electrode coated Al or Cu foil.
