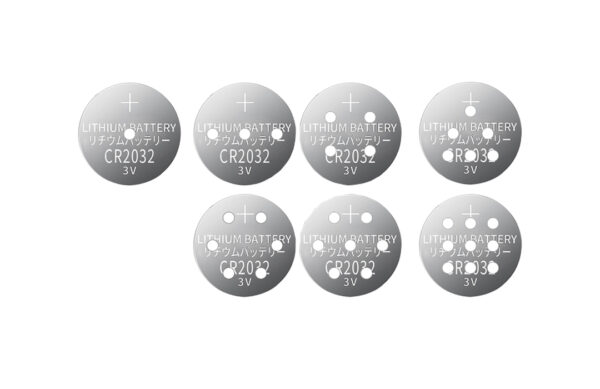

NK02 Perforated version of button battery case（10pcs）

XN-NK02 Perforated Coin Cell Case (10 pcs)

Product Type: Perforated Coin Cell Case
Product Code: XN-NK02
Material: 304 stainless steel
Brand: Xnergy

Product Introduction

The XN-NK02 is a perforated variant of the standard CR2032 button battery case, manufactured from 304 stainless steel. The perforations allow electrolyte to access the electrode surface more uniformly and enable gas produced during electrochemical reactions to escape, making this case suitable for specialized in-situ or gas-evolution experiments. The opening diameter is customizable from 1 mm to 18 mm to match specific experimental requirements.

Key Features

• 304 stainless steel — stable chemical properties, good electrical conductivity, and stable electrochemical performance
• Perforated design — allows electrolyte access and gas release during cycling
• Customizable opening diameter — 1 mm to 18 mm available on request
• Standard CR2032 dimensions — 20 mm diameter × 3 mm height
• 10 pcs per pack

Specification

Customization

Opening diameter is customizable from 1 mm to 18 mm. Contact us to specify your required opening size when ordering.

Note: Browse all coin cell cases in the Coin Cell Cases category.
