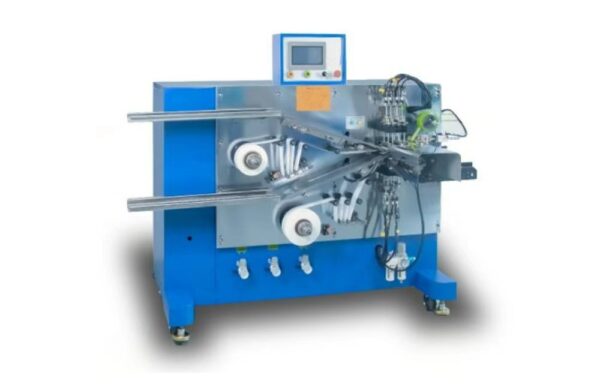

Automatic Cylindrical Cell Winding Machine XN-AWC-35
SKU: XN-AWC-35
Automatic Cylindrical Cell Winding Machine XN-AWC-35 automatically feeds separator, winds electrodes and separator, and applies termination tape for cylindrical lithium-ion cells. It supports common formats including 18650, 21700, 26650, and 32650.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Automatic Cylindrical Cell Winding Machine
Equipment Type: Automatic Cylindrical Cell Winding Machine
Product Code: XN-AWC-35
Brand: Xnergy
Product Introduction:
The XN-AWC-35 is designed for automatic winding of cylindrical lithium-ion cells. It integrates automatic separator feeding, electrode-and-separator winding, termination-tape application, and HMI control in one production system.
A constant-tension separator supply supports consistent cell tension, while adjustable electrode guides accommodate multiple electrode widths. Automatic fault alarms identify abnormal conditions and display the fault location for efficient troubleshooting.
Key Features:
Automatic separator feeding, winding, and termination-tape application
Constant-tension separator supply for consistent winding
Adjustable electrode guides for different electrode widths
HMI control for intuitive operation
Automatic fault alarm with fault-location display
Compatible with common cylindrical-cell formats
Technical Specifications:
| Parameter | Specification |
|---|---|
| Winding Mandrel Diameter | Φ3 mm standard |
| Compatible Cell Formats | 18650, 21700, 26650, 32650, and other applicable cylindrical formats |
| Cathode/Anode Length | 90–650 mm |
| Cathode/Anode Width | 28–60 mm |
| Separator Width | 30–65 mm |
| Termination Tape Width | 8–15 mm |
| Winding Alignment Accuracy | ≤±0.3 mm between separator, cathode, and anode |
| Yield | ≥98% |
| Production Speed | 3 pcs/min; affected by electrode length and operator proficiency |
| Rated Power | 1 kW |
| Compressed Air | 0.5–0.7 MPa |
| Dimensions | 1750 × 1150 × 1500 mm |
| Weight | 481 kg |
| Operating Environment | 1–40°C; relative humidity <75% |
| Power Supply | Configured according to applicable local electrical standards |
Applications:
18650 cylindrical lithium-ion cell winding
21700 cylindrical lithium-ion cell winding
26650 and 32650 cell production
Cylindrical battery research and pilot production
Automated electrode and separator winding
Note: Production speed may vary with electrode length and operator proficiency. Cell format, winding mandrel, material dimensions, and electrical configuration can be adapted to project requirements. Related equipment includes the Manual Electrode Winding Machine XN-WMC, Automatic Prismatic Cell Winding Machine XN-AWS-100, Semi-Automatic Winding Machine, Automatic Slitting and Cutting Machine XN-ARSC-300, and Electric Electrode Slitter XN-CSE-300.
