Dual-Cylinder Pneumatic Pouch Cell Edge Trimming Machine XN-TRIM-400
SKU: XN-TRIM-400
Dual-Cylinder Pneumatic Pouch Cell Edge Trimming Machine XN-TRIM-400 pneumatically trims aluminum-laminated pouch-cell edges with a 400 mm SKD11 blade, adjustable 2.5–10 mm cutting margin and ±0.1 mm cutting accuracy.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Dual-Cylinder Pneumatic Pouch Cell Edge Trimming Machine XN-TRIM-400
Equipment Type: Dual-Cylinder Pneumatic Pouch Cell Edge Trimming Machine
Product Code: XN-TRIM-400
Brand: Xnergy
Product Introduction:

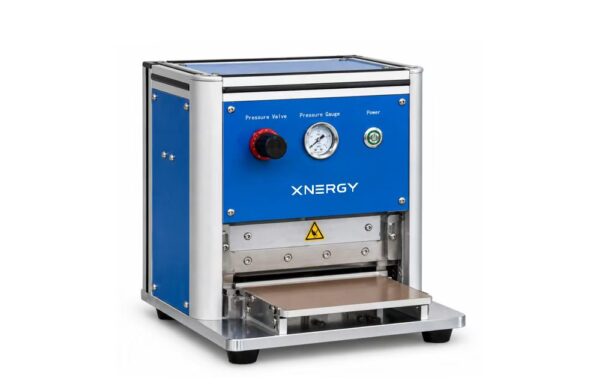

The XN-TRIM-400 is designed for trimming and forming the aluminum-laminated film edges of pouch lithium battery cells. Dual pneumatic cylinders drive SKD11 upper and lower blades, while Hiwin precision linear guides maintain alignment and a clean cut. A protective guard plate improves operator safety, while the adjustable positioning tray supports repeatable pouch placement.
Key Features:
400 mm cutting-blade length
Hiwin precision linear-guide alignment for long service life
SKD11 upper and lower cutting blades with ≥HRC 60 hardness
Dual-cylinder pneumatic drive and protective guard plate
Adjustable 2.5–10 mm trimming margin
Embedded pressure gauge for process monitoring
Adjustable pneumatic pressure and operating speed
Positioning tray for repeatable pouch-cell placement
Convenient foot-pedal operation
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Type | Pneumatic edge trimming machine for aluminum-laminated pouch cells |
| Cutting-Blade Length | 400 mm |
| Adjustable Edge Width | 2.5–10 mm |
| Blade Service Life | 10 million cycles before regrinding |
| Production Speed | 600 cycles/hour |
| Compressed-Air Supply | 0.5–0.7 MPa |
| Cutting-Blade Material | SKD11 tool steel, hardness ≥HRC 60 |
| Cutting Accuracy | ±0.1 mm |
| Guidance | Hiwin precision linear guide assembly |
| Operation | Foot-pedal actuation |
| Rated Power | 0.2 kW |
| Electrical Standard | Configured to local electrical standards |
| Safety Guard | Protective guard plate |
| Dimensions | 520 × 320 × 390 mm |
| Weight | 44 kg |
Application Areas:
Pouch-cell aluminum-laminated film edge trimming
Soft-pack lithium-battery cell finishing
Laboratory and pilot-line pouch-cell assembly
Cutting other compatible soft materials
Note: Cutting fixtures and positioning arrangements can be configured for the customer’s pouch-cell dimensions and process requirements. Explore related pouch-cell assembly equipment, slitting and die-cutting equipment, and cell assembly systems.
