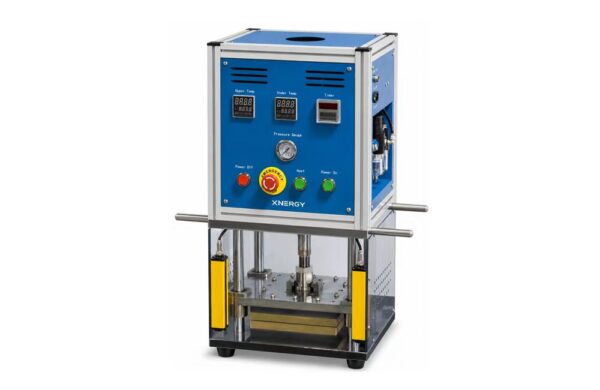

Battery Cell Hot Press Forming Machine XN-HA-200
SKU: XN-HA-200
Battery Cell Hot Press Forming Machine XN-HA-200 applies controlled heat and adjustable pressure to wound battery cells after winding, improving thickness uniformity and shape stability before cell-casing assembly.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Battery Cell Hot Press Forming Machine XN-HA-200
Equipment Type: Single-Station Battery Cell Hot Press Forming Machine
Product Code: XN-HA-200
Brand: Xnergy
Product Introduction:
The XN-HA-200 is designed for hot pressing and shape stabilization of wound battery cells after winding and before insertion into the cell casing. Controlled heat and pressure make cell thickness more uniform, reduce springback and help lower the risk of short circuits during subsequent casing operations.
Key Features:
- Adjustable hot-press temperature, time and pressure
- Independent upper and lower heated platens
- Single-station pneumatic press with stable platen parallelism
- Automatic and semi-automatic operating modes
- Digital display of set and actual temperature
- Light-curtain safety protection and abnormal-temperature alarm
- Compact structure for laboratory and pilot-line cell assembly
Technical Specifications:
| Parameter | Specification |
|---|---|
| Process | Hot pressing and shape stabilization of wound battery cells |
| Workstation | Single station |
| Hot-Press Area | 200 × 200 mm |
| Platen Material | H62 brass |
| Pressing Force | 1 T, adjustable |
| Heating Range | Ambient to 250 °C, adjustable |
| Temperature-Control Accuracy | ±2 °C |
| Platen Parallelism | ≤0.05 mm |
| Compressed-Air Supply | 0.5–0.8 MPa |
| Power | 1.5 kW |
| Electrical Standard | Configured to local electrical standards |
| Machine Dimensions | 350 × 300 × 730 mm |
| Net Weight | 78.5 kg |
Applications:
Wound-cell hot pressing
Cell thickness and shape stabilization
Battery cell preparation before casing
Laboratory and pilot-line cell assembly
Note: Fixtures, process settings and electrical configuration can be adapted to the required cell format and applicable local standards. Related equipment: Secondary Vacuum Sealing Machine XN-FVHS-400, Secondary Vacuum Sealing Machine XN-FVHS-300, Secondary Vacuum Sealing Machine XN-FVHS-200, Vacuum Electrolyte Filling and Standing Machine XN-EDP-300.
