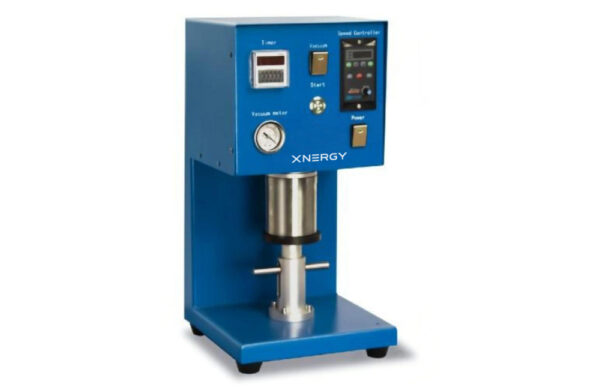

Vacuum Mixer XN-VM-500mL
Vacuum Mixer XN-VM-500mL is a compact benchtop vacuum mixer designed for laboratory mixing of lithium-ion battery cathode and anode slurries, powder materials, and ceramic compounds. Mixing under vacuum eliminates bubbles for improved slurry density and homogeneity.
The unit features soft-sealing for reliable vacuum performance, frequency-controlled variable speed, infinitely variable speed adjustment, and a 250 mL stainless steel mixing pot as standard (50 / 100 / 150 / 250 / 500 mL options available on request).
Need a bulk order or custom specification? Request a competitive quote today!
Name: Vacuum Mixer XN-VM-500mL
Equipment Type: Benchtop Vacuum Mixer
Model: XN-VM-500mL
Brand: Xnergy
Product Introduction:
Vacuum Mixer XN-VM-500mL is a compact benchtop mixing system that combines vacuum mixing and dispersion in a single sealed vessel. It is designed for laboratory mixing of lithium-ion battery cathode and anode slurries, powder-based materials, and ceramic compounds. Mixing under vacuum removes entrapped air, improving slurry homogeneity and packing density. The unit is supplied with a 250 mL stainless steel mixing pot as standard; additional pot sizes including 500 mL are available on request.
Key Features:
Industry-leading soft-sealing process for reliable vacuum performance
Frequency-controlled mixing motor with adjustable speed and torque for different process viscosities
Infinitely variable speed adjustment (0 – 1400 rpm)
Programmable mixing time up to 9,999 minutes
Stainless steel vacuum mixing pot — 250 mL standard, with 50 / 100 / 150 / 250 / 500 mL options available
Compact benchtop footprint suitable for laboratory and R&D use
Technical Specifications:
| Parameter | Specification |
|---|---|
| Power Supply | Configurable according to local electrical standards |
| Rated Power | 150 W |
| Mixing Speed | 0 – 1400 rpm (infinitely variable) |
| Vacuum | ≤ −80 kPa |
| Standard Pot Capacity | 250 mL (stainless steel) |
| Optional Pot Capacities | 50 / 100 / 150 / 250 / 500 mL |
| Mixing Time | 0 – 9,999 min (programmable) |
| Speed Control | Infinitely variable |
| Dimensions (L × W × H) | 245 × 260 × 490 mm (approx.) |
| Weight | 13.5 kg |
Application Areas:
XN-VM-500mL is suitable for:
Lithium-ion battery cathode and anode slurry mixing in laboratory environments
Mixing of powder materials and various ceramic compounds
R&D workflows requiring bubble-free, homogeneous slurry preparation in small batches
Maintenance:
Clean the equipment regularly with a soft cloth lightly moistened with alcohol
Lubricate moving parts periodically to ensure smooth operation
If the equipment is not used for an extended period, clean the moving surfaces and apply a protective anti-rust coating
Periodically inspect screws, nuts, pins, and other fasteners to prevent loosening
Safety Notes:
Do not place hands or other body parts near moving components or work-zone areas during operation
Operation should be performed by a single trained operator to avoid accidental injury
Disassembly should only be performed by qualified technicians
Specifications are provided for reference and may be adjusted to suit specific process requirements. Custom pot sizes are available on request.
Note: Specifications listed above are typical and for reference only. Actual mixing performance depends on the specific material formulation, viscosity, batch size, and process parameters. XN-VM-500mL is a small-batch laboratory mixer; for higher throughput with planetary dual-shaft blades and PLC multi-segment speed control, see the Planetary Vacuum Mixer XN-PVM-500mL or the larger production-scale Planetary Vacuum Mixer. Slurries prepared with XN-VM-500mL can be coated downstream using the Automatic Film Coater XN-VC-300 or the Slot-Die Coating System XN-SDC. For materials, see our Cathode Materials and Anode Materials.
