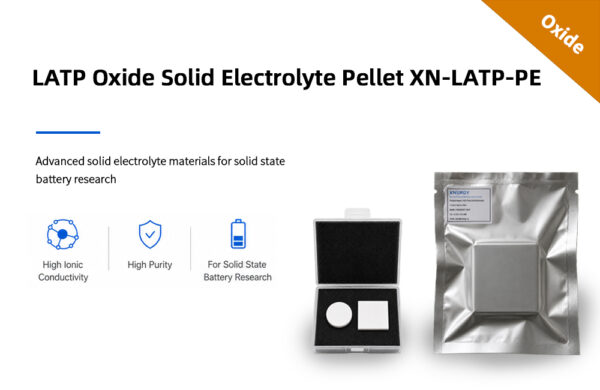

LATP Oxide Solid Electrolyte Pellet XN-LATP-PE
SKU: XN-LATP-PE
LATP Oxide Solid Electrolyte Pellet XN-LATP-PE is a customizable LATP oxide solid electrolyte pellet with a 12–76 mm diameter or side-length range, 100–500 μm thickness, ≥95% relative density, and ≥0.45 mS/cm ionic conductivity.
Standard configuration: Round pellet. For other shapes, please contact us or leave a note with your requirements.
Need a bulk order or custom specification? Request a competitive quote today!
Name: LATP Oxide Solid Electrolyte Pellet XN-LATP-PE
Material Type: LATP Oxide Solid Electrolyte Pellet
Product Code: XN-LATP-PE
Material: LATP
Brand: Xnergy
Product Introduction:
XN-LATP-PE is a customizable LATP oxide solid-state electrolyte ceramic pellet for solid-state battery, ceramic electrolyte, and materials-characterization research. The supplied specification lists a 12–76 mm diameter or side-length range with ±0.5% tolerance and 100–500 μm thickness with ±5% tolerance.
Core Features:
- Customizable LATP oxide electrolyte pellet
- Uniform color with no visible cracks
- 12–76 mm diameter or side-length range; ±0.5% tolerance
- 100–500 μm thickness range; ±5% tolerance
- ≥2.793 g/cm³ density and ≥95% relative density
- ≥0.45 mS/cm ionic conductivity by EIS at 25 ± 2 °C
- 90 ± 10 MPa flexural strength by three-point bending
- XRD and EIS characterization figures supplied
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Type | LATP oxide solid electrolyte pellet |
| Product Code | XN-LATP-PE |
| Brand | Xnergy |
| Material | LATP |
| Customization | Available |
| Appearance | Uniform color; no visible cracks |
| Diameter / Side Length | 12–76 mm; tolerance ±0.5% |
| Thickness | 100–500 μm; tolerance ±5% |
| Density | ≥2.793 g/cm³ |
| Density Test Method | Archimedes drainage method |
| Relative Density | ≥95% |
| Main Crystal Phase | PDF#35-0754 |
| Phase Test Method | XRD |
| Ionic Conductivity | ≥0.45 mS/cm |
| Conductivity Test Condition | EIS; ceramic pellet; 25 ± 2 °C |
| Flexural Strength | 90 ± 10 MPa |
| Strength Test Method | Three-point bending |
X-Ray Diffraction:

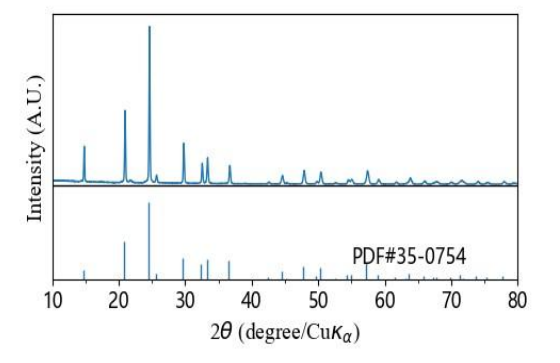

The supplied XRD pattern is shown with the PDF#35-0754 reference pattern for phase comparison.
Electrochemical Impedance Spectroscopy:

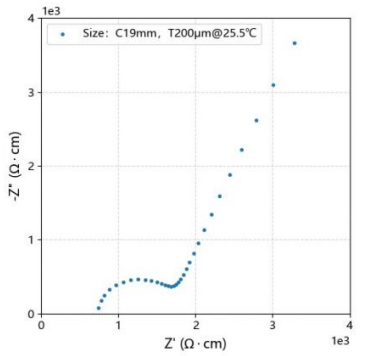

The supplied EIS plot is labeled for a C19 mm, T200 μm sample measured at 25.5 °C.
Applications:
- All-solid-state battery electrolyte-pellet research
- Ceramic electrolyte separator evaluation
- Electrode–electrolyte interface studies
- Electrochemical impedance and materials characterization
- Custom-format laboratory cell development
Note: The standard specification for this product is a round pellet. For other shapes, please contact us or leave a note with your requirements. Reported values are based on the supplied product specification. Confirm final dimensions, tolerances, thickness, and acceptance criteria when requesting a custom pellet. Actual performance depends on component geometry, surface preparation, electrode contact, cell design, temperature, and test method. Explore the Oxide category and Solid-State Electrolytes.
