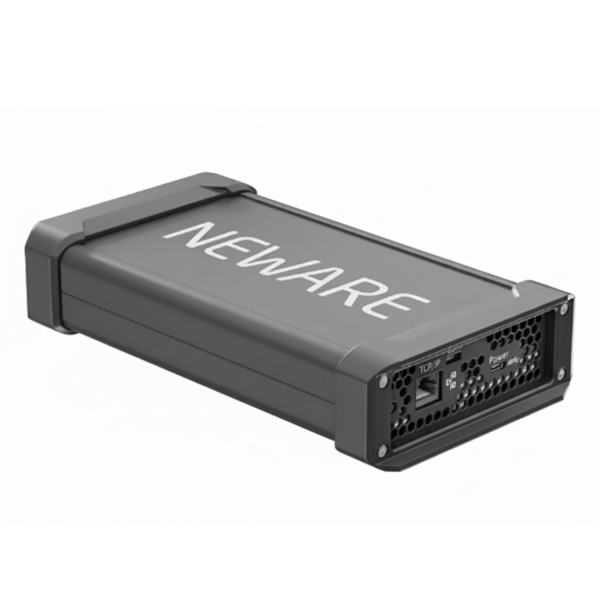

Neware CT-8002S-5V100mA-EIS Portable Battery Testing System with Cyclic Voltammetry (CV) and Electrochemical Impedance Spectroscopy (EIS), ENCT8002S5V100mAEIS

Neware CT-8002S-5V100mA-CV Portable Battery Testing System with Cyclic Voltammetry (CV), ENCT8002S5V100mACV

SKU: ENCT8002S5V100mACV

Neware CT-8002S-5V100mA-CV Portable Battery Testing System with Cyclic Voltammetry (CV), ENCT8002S5V100mACV — Portable two-channel Neware CT-8002S tester combining battery cycling and cyclic voltammetry, with -5 V to 5 V operation, six current ranges to 100 mA, and ≤20 μs response.

Need help selecting a configuration? Request a competitive quote today!

Neware CT-8002S-5V100mA-CV Portable Battery Testing System with Cyclic Voltammetry (CV), ENCT8002S5V100mACV

Product Type: Portable Battery Tester with Cyclic Voltammetry
Brand: Neware
Part Number: ENCT8002S5V100mACV

Product Introduction

The Neware CT-8002S-5V100mA-CV combines precision battery cycling with cyclic voltammetry in a compact two-channel instrument. It is intended for electrochemical material studies that require both controlled cycling and voltage-sweep analysis.

Key Features

• Integrated cyclic voltammetry — supports voltage-sweep electrochemical characterization
• Two test channels — portable dual-channel laboratory format
• -5 V to 5 V range — supports a broad set of electrochemical test conditions
• Six current ranges to 100 mA — minimum specified output current of 0.2 μA
• ≤20 μs current response — captures fast electrochemical behavior

Specification

ParameterSpecification
Part Number
  • ENCT8002S5V100mACV
Power
  • AC110V or 220V±10%, single phase, 50/60Hz, 20 W
Channel Numbers
  • Two Channels



Voltage Features

  • -5 V ~ 5V
  • Minimal discharge voltage: -5 V
  • Accuracy: ± 0.01% of F.S.
  • Stability: 0.02% of F.S.
Current Features
  • Output Current:

           Range 1: 0.1 mA,  Range 2: 1 mA,  Range 3: 5 mA

          Range 4: 10 mA,   Range 5: 50 mA, Range 6: 100 mA

  • Accuracy: ± 0.01% of F.S.
  • Minimum Output Current: 0.2 uA
  • CV Cut-Off Current:
    • Range 1: 0.1 uA, Range 2: 1 uA, Range 3: 5 uA

              Range 4: 10 uA, Range 5: 50 uA, Range 6: 0.1 mA

Output Power
  • 0.5 W/Channel
  • Accuracy: ± 0.02% of F.S.
  • Stability: 0.04% of F.S.
Time
  • Current Response Time: ≤20 us (10%-90% F.S.)
  • Current Conversion Time: ≤20 us (-90%-90% F.S.)
  • Working Step Time: ≤(365*24) h/step
    Time format-00: 00: 00.000 (h、m、s、ms)
  • Frequency: 1000 Hz (minimum time interval: 1 ms)
Cycle
  • Max. Cycles: 1-65535
  • Max. Steps: ≤255
  • Cycle Test: <10
Main Test Functions
  • Constant current charging/discharging (CCC/CCD)
  • Constant voltage charging/discharging (CVC/CVD)
  • Constant power charging/discharging (CPC/CPD)
  • Constant current constant voltage charging/discharging (CCCVC/CCCVD)
  • DCIR
  • Pulse Simulation Test
  • GITT
  • Cyclic Voltammetry (CV) scans can be inserted into the charging/discharging cycles. Scan rate: 0.01 mV/s-1V/s



Data Export Format
  • Excel, Txt, Graph, PDF, CSV
Clip Types
  • (1) Crocodile (Alligator) fixture



  • (2) Polymer fixture



    Dimension
    • L127 * W226 * H48 mm
    Weight
    • ~3 kg

    Applications

    Cyclic voltammetry, material screening, electrode reaction studies, precision battery cycling, and small-cell R&D.

    References:

    S. Chen, et al., Critical Parameters for Evaluating Coin Cells and Pouch Cells of Rechargeable Li-Metal Batteries, Joule, 2019, 3, 1094-1105

    Y. Son, et al., Analysis of Differences in Electrochemical Performance Between Coin and Pouch Cells for Lithium-Ion Battery Applications, Energy Environmental Materials, 2024, 7, e12615.
