Neware WGDW Series High and Low Temperature Test Chamber (150-1000 L), ENWGDWHLTTC — Neware WGDW high/low-temperature chamber series with selectable 150–1000 L volumes, maximum temperatures to 150°C, and low-temperature options down to -70°C.

Need help selecting a configuration? Request a competitive quote today!

Neware WGDW Series High and Low Temperature Test Chamber (150-1000 L), ENWGDWHLTTC

Product Type: High- and Low-Temperature Battery Test Chamber
Brand: Neware
Part Number: ENWGDWHLTTC

Product Introduction

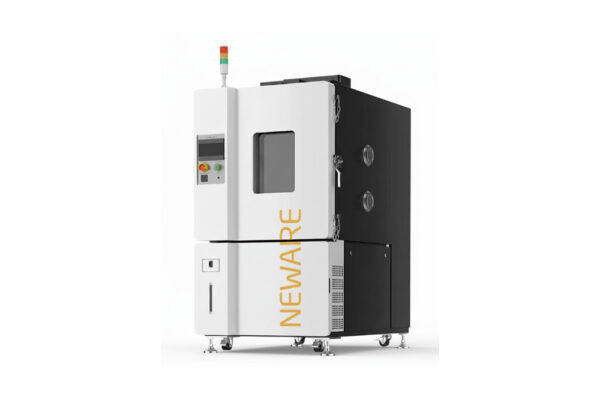

The Neware WGDW Series provides high- and low-temperature chambers for battery reliability, safety, and performance validation. Selectable volumes from 150 L to 1000 L support different fixture densities and temperature ranges down to -70°C, depending on the model.

Key Features

• Five selectable chamber volumes — 150 L, 225 L, 408 L, 800 L, and 1000 L
• Up to 150°C maximum temperature — supports elevated-temperature aging and reliability tests
• Low-temperature options to -70°C — minimum temperature depends on chamber volume
• ±1°C temperature fluctuation — ±2°C specified deviation
• Scalable channel capacity — fixture and channel count depend on the selected chamber size

Specification

ParameterSpecification
Part Number
  • ENWGDWHLTTC
Power
  • AC220V±10%, single phase, 50/60Hz, 2000W
Channel Numbers

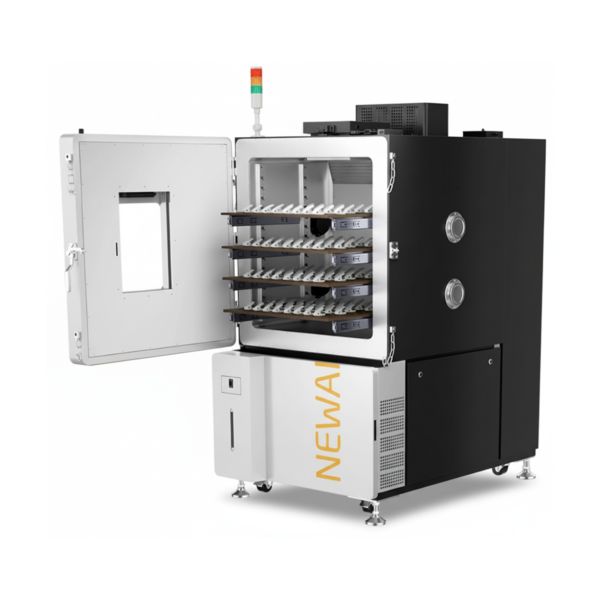

  • Depends on the chamber volume. For example, 225 L can accommodate 4 shelves and the maximum channels can be up to 160 channels.
150 L Version
  • Heating Rate: (-20℃ ~ 150℃)≤ 60 min
  • Cooling Rate: (20℃ ~ -20℃)≤ 45 min
  • Inner Size: W500mm×D500mm×H600mm
  • External Size: W750mm×D1300mm×H1750mm
225 L Version
  • Heating Rate: (-40℃ ~ 150℃)≤ 60min
  • Cooling Rate: (20℃ ~ -40℃)≤ 60min
  • Inner Size: W600mm×D500mm×H750mm
  • External Size: W850mm×D1300mm×H1850mm
408 L Version
  • Heating Rate: (-40℃ ~ 150℃)≤ 60min
  • Cooling Rate: (20℃ ~ -40℃)≤ 60min
  • Inner Size: W800mm×D600mm×H850mm
  • External Size: W1050mm×D1400mm×H1950mm
800 L Version
  • Heating Rate: (-70℃ ~ 150℃)≤ 60min
  • Cooling Rate: (20℃ ~ -70℃)≤ 75min
  • Inner Size: W1000mm×D800mm×H1000mm
  • External Size: W1250mm×D1600mm×H2100mm
1000 L Version
  • Heating Rate: (-70℃ ~ 150℃)≤ 60min
  • Cooling Rate: (20℃ ~ -70℃)≤ 75min
  • Inner Size: W1000mm×D1000mm×H1000mm
  • External Size: W1250mm×D1800mm×H2100mm
Temperature Fluctuation
  • ±1℃
Temperature Deviation
  • ±2℃

Applications

Battery temperature cycling, environmental reliability testing, cold-start and high-temperature studies, aging validation, and safety research.

References:

A. Dubois, et al., Coin Cell Battery Chamber Design for Low-temperature Operando Experiments, JOVE, DOI: 10.3791/68972

B. Kwon, et al., In Situ Gas Analysis and Fire Characterization of Lithium-Ion Cells During Thermal Runaway Using an Environmental Chamber, JOVE, DOI: 10.3791/65051.
