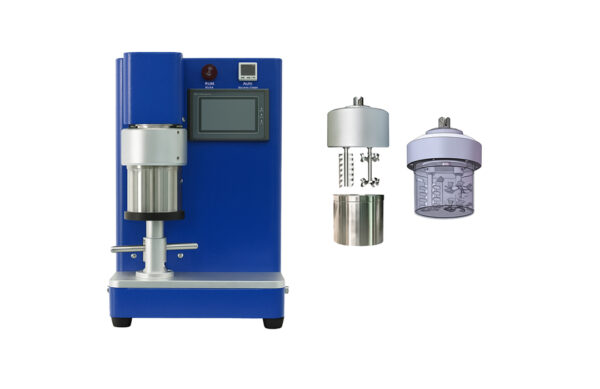

Planetary Vacuum Mixer for Mixing Electrode Powders
SKU: XN-XJB-4
Need a bulk order? Request a competitive quote today!
Product Introduction

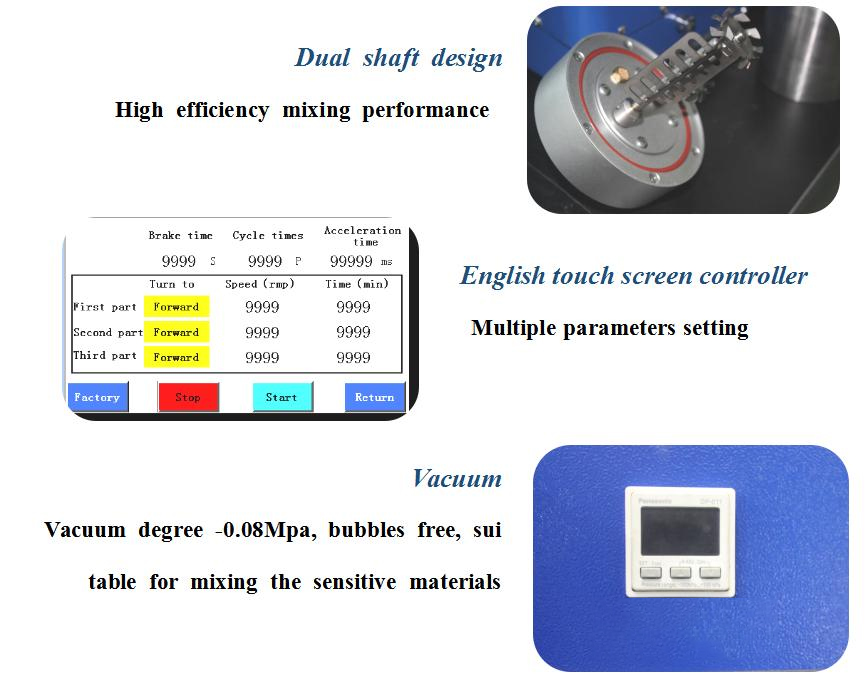

MR-XJB-4 is a compact dual-shaft planetary vacuum mixer. Compared to single shaft models, the dual shaft mixer comes with three segments programmable mixing speed from 0 – 1400 rpm, which provides more uniform slurry mixing. It has a built-in pump for removing gas bubble, which can vacuum the mixing container to -0.08 MPa. XN-XJB-4 is a high-quality mixer tool for preparing battery electrode paste and various ceramic materials in a research lab. (heating container is optional up to 200 0C)
| Category | Specifications |
|---|---|
| Model | Compact Lab Slurry Vacuum Mixer XN-XJB-4 |
| Voltage | AC 100–240 V, Frequency: 50/60 Hz |
| Rotary Speed | Max 1400 rpm |
| Mixing Container | One 500 ml vacuum-sealed stainless steel container included (50 ml, 150 ml & 250 ml optional) |
| Mixing Blade | Built into the top of the container |
| Vacuum Pump | Built-in single-stage vacuum pump, Vacuum Level: -0.08 MPa |

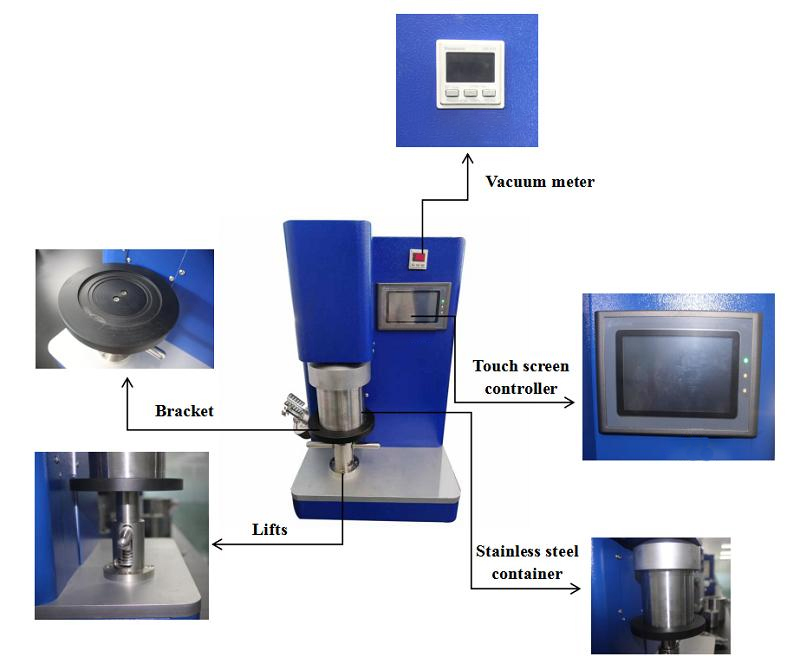

| Control Panel | • Color touch screen for easy parameter setting • Mixing Time: 0–600 minutes • Mixing Speed: 0–1400 rpm, 3 programmable segments • Note: Max speed depends on slurry viscosity |
| Dimensions | 330 × 320 × 570 mm |
| Net Weight | 35 kg |
| Compliance | CE Certified |
| Warranty | 1-year limited warranty with lifetime technical support |
