SEM Vacuum Sample Transfer Chamber (FB08-CSDS01)

SEM vacuum sample transfer chamber designed for safe, contamination-free transfer of air-sensitive samples. Suitable for precise sample handling and compatible with multiple SEM systems.

Custom dimensions are available upon request. Please contact us for details.
Need a bulk order? Request a competitive quote today!

Request a Quote

SEM Transfer Chamber

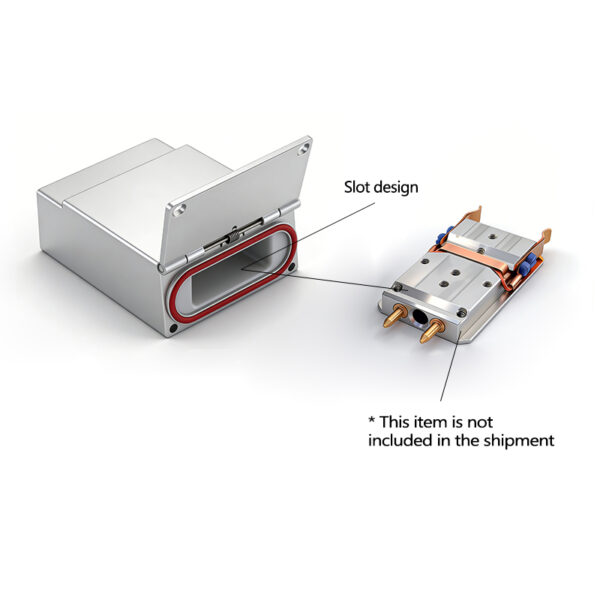

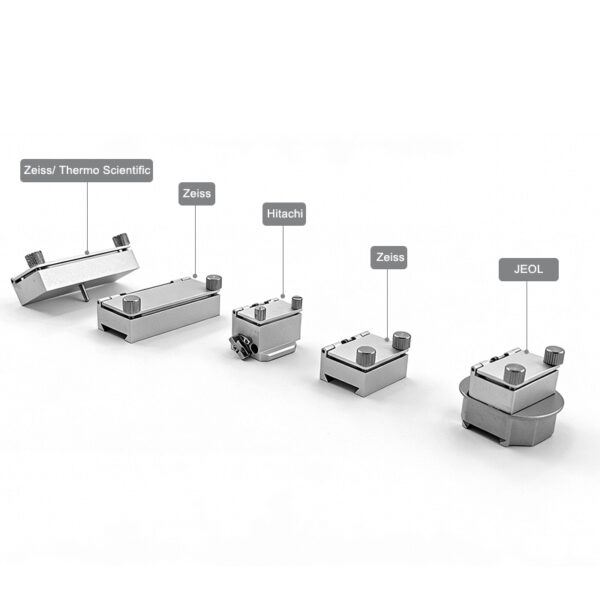

The SEM Transfer Chamber is designed for the safe and reliable transfer of air-sensitive samples during microscopic analysis. To meet the interface standards and vacuum requirements of different electron microscope brands, this solution supports brand-specific customization and multi-specification compatibility, making it suitable for systems from Zeiss, Thermo Fisher, Hitachi, and other platforms.

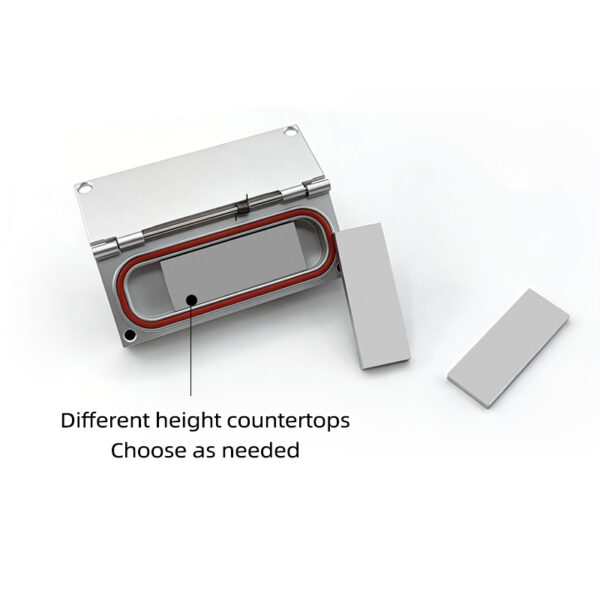

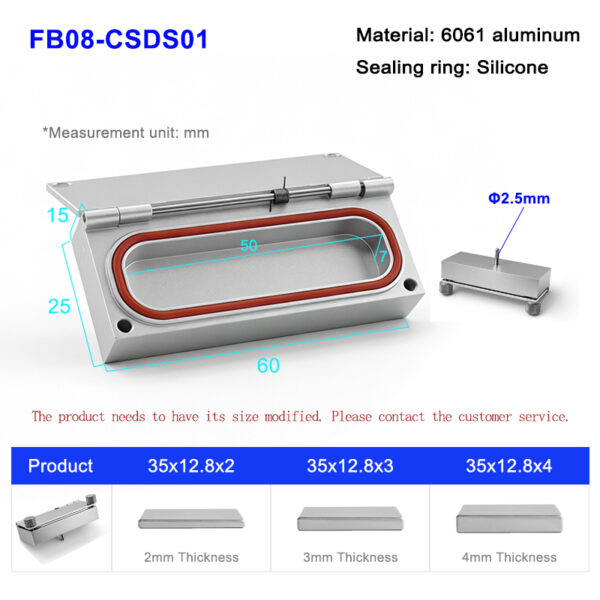

To improve adaptability, the chamber is equipped with three precision spacer blocks (2 mm, 3 mm, and 4 mm), allowing users to easily adjust the sample height according to the actual thickness of the specimen. This helps ensure that the sample remains at an optimal working distance for accurate observation and high-quality imaging results.

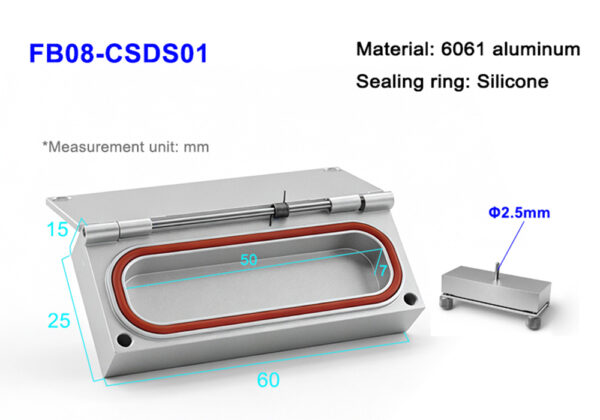

The chamber body is manufactured with an anodized surface treatment, offering high cleanliness, strong inertness, and enhanced hardness. This processing method helps reduce contamination, prevents unwanted ion release, improves wear resistance, and better protects the integrity and purity of valuable samples during transfer and observation.

With high-precision machining and customizable design options, the SEM Transfer Chamber can be tailored to specific application needs, providing a practical solution for researchers handling moisture-sensitive, oxygen-sensitive, or contamination-sensitive materials.
