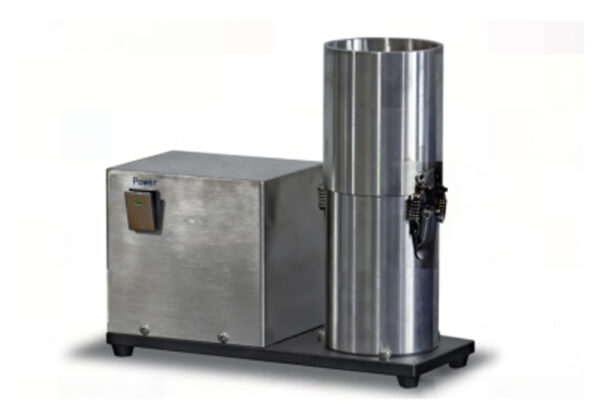

Laboratory Slurry Filtration Device

I. Product Introduction

This filtration device is a specialized filter designed for laboratory sample applications. It is used to remove hard particles in slurry with a particle size not smaller than 124 microns.

The equipment features a compact structure, convenient operation, and an aesthetically pleasing design, making it suitable for laboratory research involving battery slurry preparation and material filtration.

II. Main Features

High filtration accuracy – Filtration precision up to 124 μm, suitable for removing large particles in slurry.
Dual-purpose filter meshes – Equipped with filter meshes suitable for both positive and negative electrode particles.
High-quality materials – Constructed entirely from SUS304 stainless steel, providing excellent corrosion resistance and easy cleaning.
Large filtration area – Low pressure loss and extended service life.
Compact structure – Small footprint with convenient operation.
Stable performance – Attractive appearance, easy maintenance, and reliable operation.

III. Technical Parameters

Parameter	Specification
Overall dimensions	270 × 120 × 260 mm
Weight	5 kg
Power adapter	AC 110V / 220V ±10% 50 Hz
Power	100 W
Ultimate vacuum	-80 kPa
Pump flow rate	12 L/min
Standard filter mesh	150 mesh
Optional filter mesh	Up to 1000 mesh
Capacity	500 ml

IV. Main Component Brands

Component	Brand
Switch button	IDEC (Japan)
Power supply	Mean Well (Taiwan)

V. Maintenance Method

Frequently wipe the equipment with a soft cloth soaked in alcohol to keep it clean.
Lubricate moving parts regularly to ensure smooth operation.
If the equipment is not used for a long time, clean the surface of moving components and apply anti-rust oil for protection.
Regularly inspect screws, nuts, pins, and other fasteners to prevent loosening and avoid equipment failure or personal injury.
