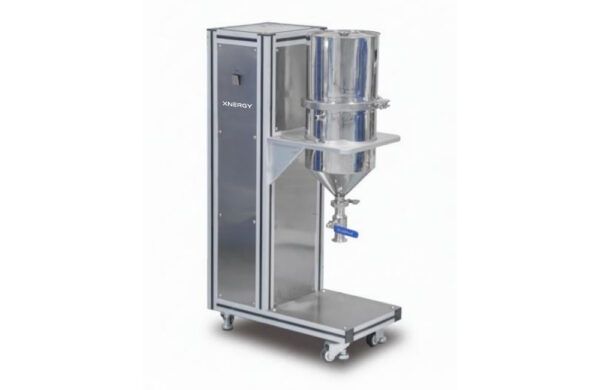

Slurry De-Iron Filter XN-FTM-10L
SKU: XN-FTM-10L
Slurry De-Iron Filter XN-FTM-10L is a combined magnetic de-iron and vacuum filtration unit for the optimization step between slurry mixing and electrode coating in lithium-ion battery manufacturing. The unit removes both ferromagnetic contamination (via removable permanent magnets at 8,000–10,000 Gauss) and oversize hard particles (via a vacuum-driven filtration screen) in a single batch process.
XN-FTM-10L handles 10 L per batch — the largest in Xnergy’s de-iron filter line — accepts mesh sizes up to 1000-mesh (80–120 mesh recommended for typical lithium-ion electrode slurries), and is suitable for slurries up to 20,000 cP viscosity and 80% solid content. The all-stainless-steel build supports thorough cleaning between cathode and anode runs.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Slurry De-Iron Filter XN-FTM-10L
Equipment Type: Combined Magnetic De-Iron and Vacuum Filtration Unit
Product Code: XN-FTM-10L
Brand: Xnergy
Product Introduction:
Slurry De-Iron Filter XN-FTM-10L is the largest unit in Xnergy’s combined magnetic separation and vacuum filtration line, designed for slurry optimization between mixing and electrode coating in lithium-ion battery production. Removable high-strength permanent magnets capture ferromagnetic contamination (Fe, Ni, magnetic alloys) from cathode and anode slurries, while a vacuum-driven filtration screen below removes oversize hard particles in the same batch. The all-stainless-steel construction supports thorough cleaning between cathode and anode runs, and the 10 L per-batch capacity is sized for production-scale electrode workflows.
Working Principle:
Slurry is poured into the upper chamber, where permanent magnets capture ferromagnetic particles. Vacuum then draws the slurry through a fine filtration screen into the lower chamber, removing oversize hard particles. Once filtration is complete, a discharge valve is opened to transfer the optimized slurry to the next process step.
Key Features:
Dual-action slurry treatment — magnetic de-iron + vacuum filtration in one batch
Removable permanent magnets at 8,000–10,000 Gauss for efficient capture of ferromagnetic contamination
Easy magnet removal for cleaning and inspection
All-stainless-steel construction for corrosion resistance and cleanability
Filtration mesh up to and including 1000-mesh (80–120 mesh recommended for lithium-ion electrode slurries)
Suitable for slurries up to 20,000 cP viscosity and 80% solid content
10 L per-batch capacity sized for production-scale electrode preparation
Discharge valve for controlled slurry transfer to downstream process
Technical Specifications:
| Parameter | Specification |
|---|---|
| Process Functions | Vacuum filtration + magnetic de-iron (batch process) |
| Batch Capacity | 10 L per batch |
| Vacuum Pressure (absolute) | −65 kPa |
| Magnetic Field Strength | 8,000 – 10,000 Gauss (removable permanent magnets) |
| Filtration Mesh | Up to 1000-mesh; 80–120 mesh recommended for lithium-ion electrode slurries |
| Recommended Slurry Viscosity | ≤ 20,000 cP |
| Recommended Solid Content | ≤ 80% |
| Power Supply | Configurable according to local electrical standards |
| Rated Power | 0.5 kW |
| Wetted-Part Material | Stainless steel |
| Installation Dimensions (L × W × H) | 550 × 300 × 1300 mm |
| Weight | 50 kg |
Application Areas:
XN-FTM-10L is suitable for:
Optimizing lithium-ion battery cathode and anode slurries between mixing and coating at production scale
Removing ferromagnetic contamination (Fe, Ni, magnetic alloys) that would otherwise cause internal short-circuit risk in finished cells
Removing oversize hard particles that would otherwise cause coating streaks or pinholes
Production-scale electrode preparation workflows where slurry consistency and coating yield matter
Maintenance:
Clean the equipment regularly with a soft cloth lightly moistened with alcohol
Lubricate moving parts periodically to ensure smooth operation
If the equipment is not used for an extended period, clean the moving surfaces and apply a protective anti-rust coating
Periodically inspect screws, nuts, pins, and other fasteners to prevent loosening
Remove and clean the permanent magnets between batches to maintain de-iron efficiency
Safety Notes:
Do not place hands or other body parts near moving components or work-zone areas during operation
Operation should be performed by a single trained operator to avoid accidental injury
Disassembly should only be performed by qualified technicians
Handle the strong permanent magnets with care during cleaning — keep clear of magnetic-sensitive electronics, pacemakers, and tools
Specifications are provided for reference and may be adjusted to suit specific process requirements. Custom mesh sizes are available on request.
Note: Specifications listed above are typical and for reference only. Actual filtration and de-iron performance depend on slurry viscosity, solid content, contamination level, and operating conditions. XN-FTM-10L is the largest unit in Xnergy’s de-iron filter range and is matched to production-line mixing throughput — the natural pairing for the XN-PVM-10L planetary mixer, where one mixer batch corresponds to one filter batch, keeping the workflow continuous without intermediate batching. For pilot lines running 5 L batches, the XN-FTM-5L is a closer size match. When magnetic separation is not required and only oversize-particle removal is needed, the simpler vacuum-only XN-FT-2L offers a lower-cost path. Downstream, the de-ironed slurry typically feeds the Slot-Die Coating System XN-SDC for continuous precision coating. For cathode materials where de-iron treatment is most critical — particularly NCM, NCA, LFP, and LMFP — see our Cathode Materials catalog.
