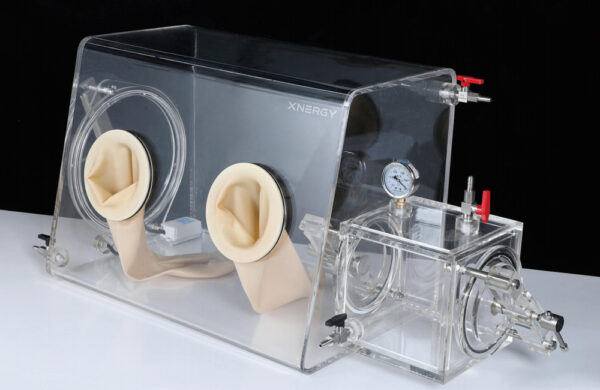

Acrylic Glove Box Type B XN-GBTB
SKU: XN-GBTB
Acrylic Glove Box Type B XN-GBTB is a fully transparent PMMA isolation chamber for inert-gas displacement and dust-free, dry experiments. It is highly sealed, with stainless steel gas valves and sealed latex gloves for convenient work under an inert-gas atmosphere.
Unlike the Type A box, Type B includes a transition box that can be vacuumed to about -0.1 MPa for cleaner sample transfer, with twelve sizes from 700 mm to 1200 mm wide and two to four glove ports.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Acrylic Glove Box Type B XN-GBTB
Equipment Type: Acrylic (PMMA) Glove Box, Type B (with Transition Box)
Product Code: XN-GBTB
Brand: Xnergy
Product Introduction:
The XN-GBTB Acrylic Glove Box, Type B, is a simple, fully transparent isolation chamber for work that needs inert-gas displacement, a dust-free or dry environment, or UV-related conditions. Made of PMMA (acrylic) with stainless steel gas valves and sealed latex gloves, it is highly sealed and well suited to convenient operation under an inert-gas atmosphere. Unlike the Type A box, the Type B configuration includes a transition box (antechamber) that can be evacuated to about -0.1 MPa for cleaner sample transfer.
Key Features:
Fully transparent PMMA construction for easy observation
Highly sealed, with stainless steel valves for gas inlet and outlet
Sealed latex gloves for convenient work in an inert-gas atmosphere
Transition box (antechamber) that can be vacuumed to about -0.1 MPa
Cleaner sample transfer than open-transfer designs
Customization accepted
Technical Specifications:
| Model | External Size (L × D × H) | Thickness | Transition Box | Material | Left Round Door | Gloves | Transition Box Size |
|---|---|---|---|---|---|---|---|
| XN-GBTB-12 | 700 × 450 × 500 mm | 10 mm | Yes | PMMA | φ300 mm | 2 | 240 × 240 × 240 mm |
| XN-GBTB-11 | 800 × 550 × 600 mm | 10 mm | Yes | PMMA | φ350 mm | 2 | 240 × 240 × 240 mm |
| XN-GBTB-10 | 1000 × 500 × 500 mm | 10 mm | Yes | PMMA | φ300 mm | 2 | 240 × 240 × 240 mm |
| XN-GBTB-09 | 1000 × 700 × 500 mm | 10 mm | Yes | PMMA | φ300 mm | 2 | 240 × 240 × 240 mm |
| XN-GBTB-08 | 900 × 600 × 700 mm | 10 mm | Yes | PMMA | φ300 mm | 2 | 240 × 240 × 240 mm |
| XN-GBTB-07 | 1000 × 600 × 700 mm | 10 mm | Yes | PMMA | φ300 mm | 2 | 240 × 240 × 240 mm |
| XN-GBTB-06 | 1000 × 750 × 700 mm | 10 mm | Yes | PMMA | φ300 mm | 2 | 240 × 240 × 240 mm |
| XN-GBTB-05 | 1200 × 600 × 600 mm | 10 mm | Yes | PMMA | φ300 mm | 3 | 240 × 240 × 240 mm |
| XN-GBTB-04 | 1200 × 600 × 700 mm | 10 mm | Yes | PMMA | φ300 mm | 3 | 240 × 240 × 240 mm |
| XN-GBTB-03 | 1200 × 800 × 600 mm | 10 mm | Yes | PMMA | φ300 mm | 3 | 240 × 240 × 240 mm |
| XN-GBTB-02 | 1200 × 800 × 700 mm | 10 mm | Yes | PMMA | φ300 mm | 3 | 240 × 240 × 240 mm |
| XN-GBTB-01 | 1094 × 640 × 645 mm | 10 mm | Yes | PMMA | φ400 mm | 4 | 240 × 240 × 240 mm |
Application Areas:
Inert-gas isolation with cleaner transfer for air- and moisture-sensitive work
Dust-free and dry-environment experiments
Battery R&D — handling sensitive materials and small assemblies under inert gas
Sample handling, weighing, and observation under a protective atmosphere
Work needing a transparent sealed chamber with a vacuum-capable antechamber
Maintenance:
Inspect the gloves, seals, valves, and transition-box O-rings for wear or leaks
Clean the PMMA surfaces with soft, non-abrasive cloths to avoid scratching
Verify the vacuum and inert-gas supply and sealing before each session
Replace damaged gloves or seals promptly to maintain the atmosphere
Safety Notes:
Follow the correct evacuation and back-fill sequence when using the transition box
Use only the specified inert gas and do not exceed the rated vacuum
Keep the acrylic away from solvents and heat sources that can damage PMMA
Handle reactive or sensitive materials according to lab procedures
Specifications are provided for reference and may be adjusted to suit specific process requirements. Size, glove count, and options are specified at order time.
Note: Specifications listed above are typical and for reference only. The XN-GBTB Acrylic Glove Box, Type B, is a fully transparent, highly sealed PMMA chamber that adds a transition box vacuumed to about -0.1 MPa, giving cleaner sample transfer for air- and moisture-sensitive materials such as Cathode Materials and Anode Materials. For a more economical box without a transition box, see the XN-GBTA Acrylic Glove Box Type A; for full-vacuum work in a corrosion-resistant stainless steel chamber, step up to the XN-STX Stainless Steel Glove Box.
