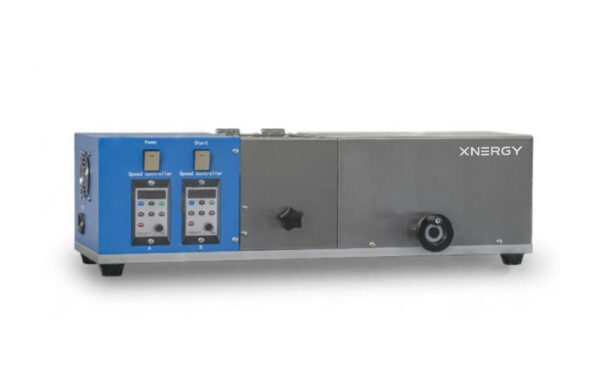

Cylindrical Battery Disassembly Machine XE-CK650
SKU: XE-CK650
Cylindrical Battery Disassembly Machine XE-CK650 is bench-top equipment for decasing sealed cylindrical cells so the core can be retrieved for research and verification. Fitted with molds of different specifications, it disassembles various cylindrical cell formats (for example 18650 and 21700).
The whole machine is safe to operate, compact in design, and flexible and convenient to use. It offers high disassembly precision without damaging the cell core inside the casing, a tungsten carbide saw blade, an independent cutting-blade motor (1000 rpm) and mold rotation motor (320 rpm), and 0.01 mm micrometer cutting-depth adjustment.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Cylindrical Battery Disassembly Machine
Equipment Type: Battery Disassembly Equipment
Product Code: XE-CK650
Brand: Xnergy
Product Introduction:
The Xnergy XE-CK650 is used to remove the casing of cylindrical cells after sealing, so the cell can be retrieved for research and verification. Fitted with molds of different specifications, it can disassemble different models of cylindrical lithium batteries (for example 18650 and 21700). The whole machine is safe to operate, compact in design, and flexible and convenient to use.
Key Features:
Fitted with different molds/fixtures to disassemble various cylindrical cells
High disassembly precision — does not damage the cell core inside the casing
Simple operation, safe and reliable, with a neat appearance
Independent cutting-blade motor (1000 rpm) and mold rotation motor (320 rpm)
Tungsten carbide shell-cutting saw blade
Micrometer cutting-depth adjustment with 0.01 mm precision
Technical Specifications:
| Parameter | Value |
|---|---|
| Decasing Mold | Standard 18650 (other molds optional) |
| Cutting Blade Motor Speed | 1000 rpm |
| Mold Rotation Speed | 320 rpm |
| Saw Blade Material | Tungsten carbide |
| Micrometer Precision | 0.01 mm |
| Power Supply | Configurable according to local electrical standards |
| Rated Power | 0.2 kW |
| Dimensions (L × W × H) | 570 × 320 × 220 mm |
| Weight | 29.5 kg |
Maintenance:
1. Wipe regularly with a soft cloth dampened with alcohol to keep the machine clean.
2. Lubricate moving parts to keep motion smooth.
3. When the machine will not be used for a long time, wipe the surfaces of the moving parts clean and spray them with anti-rust oil for protection.
4. Periodically inspect the screws, nuts, pins, and other fasteners on each part of the machine to prevent loosening and to avoid equipment or personal accidents.
Safety:
1. During operation, never place your hands or any other part of the body into the moving parts or the hazardous working area. Do not allow two or more people to operate the machine at the same time, to avoid accidental injury.
2. External or non-designated personnel must not disassemble the equipment at will.
Customization:
Supplied with a standard 18650 decasing mold; molds for other cylindrical cell formats are available on request.
Note: The XE-CK650 is a bench-top cylindrical cell disassembly machine for opening sealed cells to retrieve the core for research. For sealing sealed cylindrical cells, see the Automatic Cylindrical Cell Sealing Machine; for electrolyte filling, see the Electrolyte Filling & Vacuum Standing Machine. Browse all options in the Cylindrical Cell Assembly category.
