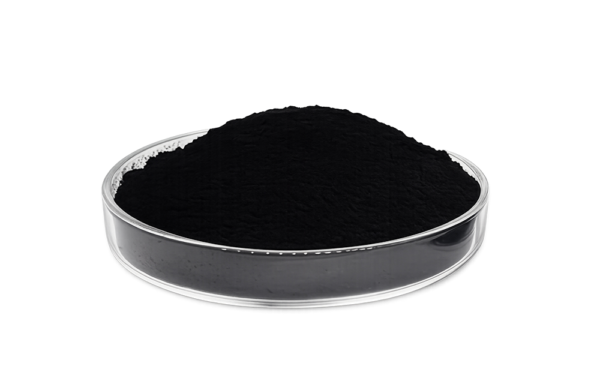

Dynanonic DY-3 nano LFP cathode material powder

Dynanonic DY-3 Nano LFP Cathode Material

SKU: DY-3

Dynanonic DY-3 Nano LFP Cathode Material is a Dynanonic nano LiFePO₄/C powder for cathode material research. The supplied reference report records 158.8 mAh/g discharge capacity, 98.7% initial 0.1C efficiency and D50 of 0.78 μm.

Need a bulk order? Request a competitive quote today!

Dynanonic DY-3 Nano LFP Cathode Material

Material: Nano Lithium Iron Phosphate (LiFePO₄/C)
Model / Product Code: DY-3
Brand: Dynanonic

Product Introduction

Dynanonic DY-3 is a nano lithium iron phosphate/carbon cathode material. The supplied inspection report provides reference physical, electrochemical, particle-size and elemental-composition results.

Core Features

  • Nano LiFePO₄/C cathode material powder
  • Reference discharge capacity of 158.8 mAh/g
  • Reference initial 0.1C efficiency of 98.7%
  • Reference D50 particle size of 0.78 μm
  • Reference powder compaction density of 2.447 g/cm³

Reference Inspection Results

Parameter Reference Test Result
Product / Model DY-3
Brand Dynanonic
Material Nano lithium iron phosphate (LiFePO₄/C)
Appearance Gray-black powder; uniform color; no hard agglomerates
pH 9.61
Moisture 312 ppm
Resistivity 35.9 Ω·cm
Discharge Capacity 158.8 mAh/g
Charge Capacity 160.9 mAh/g
Initial 0.1C Efficiency 98.7%
Powder Compaction Density 2.447 g/cm³
Specific Surface Area 11.64 m²/g
Tap Density 0.46 g/cm³
Vibrated Density 1.06 g/cm³
Particle Size D10 0.38 μm
Particle Size D50 0.78 μm
Particle Size D90 2.25 μm
Particle Size D97 4.27 μm
Particle Size D99 6.31 μm
Magnetic Metal Particles 11 pcs/kg
Lithium (Li) 4.42%
Iron (Fe) 34.65%
Phosphorus (P) 19.59%
Carbon (C) 1.09%
Na + K 0.0065%
Ni + Cr + Cu + Zn 0.0073%
Ca + Al + Si 0.0065%
Mg + Mn 0.0071%
Documented Shelf Life 12 months at -10 to 45°C and relative humidity ≤85%

Applications

  • LFP cathode material evaluation
  • Lithium-ion battery electrode formulation research
  • Powder characterization and electrochemical testing

Note: The numerical values above are reference measured results from the supplied inspection report and should not be treated as current-batch guaranteed specifications. Request current documentation when batch-specific data are required. Browse Cathode Materials and Li-ion LFP / LCO / LMFP Cathode for related materials.
