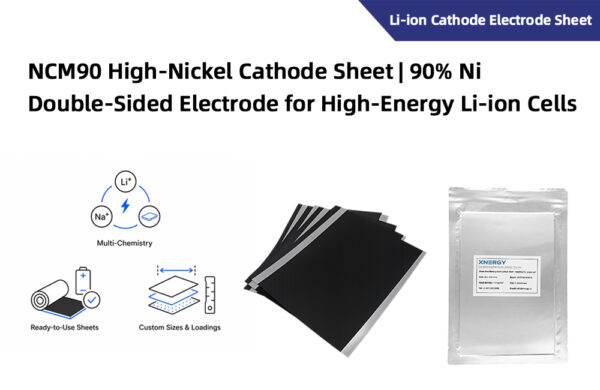

NCM90 High-Nickel Cathode Sheet | 90% Ni Double-Sided Electrode for High-Energy Li-ion Cells

Name: NCM90 High-Nickel Cathode Electrode Sheet

Material Type: NCM90 (Ni ≥ 90%) Lithium Nickel Cobalt Manganese Oxide on Carbon-Coated Aluminum Foil

Product Code: XN-NCM90-ES

Product Introduction:

NCM90 is a high-nickel lithium nickel cobalt manganese oxide cathode material with Ni content of approximately 90%, offering high energy density for advanced lithium-ion batteries. This electrode sheet features NCM90 active material coated on carbon-coated aluminum foil, with active material loading options of 2, 3, or 5 mg/cm² and active material content of 80% or 90%. Electrode size is 7 × 7 cm. Multiple specifications are available and customization is supported upon request.

Key Features:

NCM90 active material (Ni ≥ 90%) — high energy density for advanced Li-ion research
Reference specific capacity 200 mAh/g (0.1C)
Current collector: carbon-coated aluminum foil, 1 + 15 + 1 μm, 4.14 mg/cm²
Active material loading: 2 / 3 / 5 mg/cm² (other loadings available on request)
Active material content: 80% or 90%
Electrode size: 7 × 7 cm (customization supported)
Multiple specifications available — customization supported

Main Specifications:

Notes:

Active material loading is calculated as: (weight of punched electrode − weight of current collector) × active material content %.

Storage & Handling:

Store sealed in a cool, dry, low-humidity environment. After opening, reseal immediately and store in a glove box or in a drying oven at 60°C. Handle by the edges to avoid contaminating the active coating.

Note: Specifications are for reference only. Actual electrochemical performance depends on counter/reference electrode selection, electrolyte, separator, cell assembly conditions, and cycling protocol. For anode electrode sheets, see the Anode Materials category. For electrolytes, see the Electrolytes category. For coin cell assembly components, see Coin Cells & Hardware.
