EASPRING ME-93SC Single-Crystal NCM Cathode

EASPRING ME-93SC Single-Crystal NCM Cathode Material 1kg

SKU: ME-93SC

$482.00

EASPRING ME-93SC Single-Crystal NCM Cathode — high-nickel single-crystal NCM with Ni 92.4 / Co 5.6 / Mn 2.0 wt%, D50 3.525 μm, tap density 1.72 g/cm³, S.S.A 0.67 m²/g.

Coin-cell testing at 0.1C, 4.3–3.0 V delivers 217.80 mAh/g discharge capacity. Low surface lithium residues (LiOH 0.202 wt%, Li₂CO₃ 0.246 wt%).

Need a bulk order or custom specification? Request a competitive quote today!

Name: EASPRING ME-93SC Single-Crystal NCM Cathode

Material Type: Single-Crystal Lithium Nickel Cobalt Manganese Oxide (NCM)

Product Code: ME-93SC

Brand: EASPRING

Product Introduction:

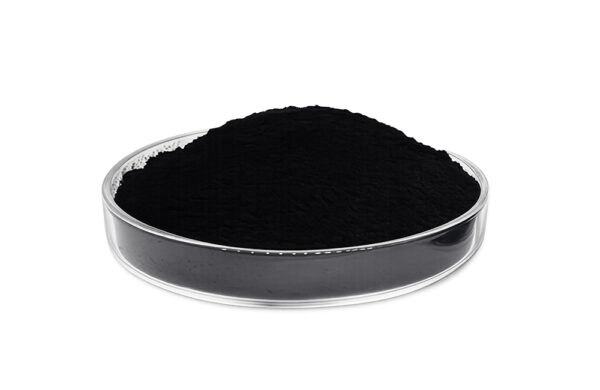

The EASPRING ME-93SC is a single-crystal high-nickel lithium nickel cobalt manganese oxide (NCM) cathode material with Ni / Co / Mn = 92.4 / 5.6 / 2.0 wt%. The material is supplied as a grey-black powder with D50 3.525 μm, tap density 1.72 g/cm³, and specific surface area 0.67 m²/g, with low surface lithium residues and low moisture content.

Key Features:

Single-crystal high-nickel NCM chemistry — Ni 92.4 / Co 5.6 / Mn 2.0 wt%
0.1C discharge capacity 217.80 mAh/g (4.3–3.0 V, coin cell)
Particle size distribution — D10 2.057 μm / D50 3.525 μm / D90 6.283 μm
Tap density 1.72 g/cm³, S.S.A 0.67 m²/g
Low surface lithium residues — LiOH 0.202 wt%, Li₂CO₃ 0.246 wt%
Low moisture content 175 ppm
Low impurity content — Ca, Cu, Fe, Na all well below specification limits

Physical Properties:

Parameter Specification Test Value
Appearance Grey-black powder Grey-black powder
D10 (μm) ≥ 1.500 2.057
D50 (μm) 3.000 – 4.000 3.525
D90 (μm) ≤ 10.000 6.283
Dmax (μm) ≤ 15.000 9.928
H₂O (ppm) ≤ 500 175
Li₂CO₃ (wt%) ≤ 0.350 0.246
LiOH (wt%) ≤ 0.300 0.202
pH ≤ 11.80 11.60
Specific Surface Area (m²/g) 0.50 – 0.90 0.67
Tap Density (g/cm³) ≥ 1.50 1.72

Chemical Composition:

Element Specification Test Value
Ni (wt%) 93.0 ± 1.5 92.4
Co (wt%) 5.0 ± 1.5 5.6
Mn (wt%) 2.0 ± 1.5 2.0
Ca (wt%) ≤ 0.0100 0.0001
Cu (wt%) ≤ 0.0020 0.0002
Fe (wt%) ≤ 0.0050 0.0001
Na (wt%) ≤ 0.0300 0.0056

Electrochemical Performance (Coin Cell, 0.1C, 4.3–3.0 V):

Parameter Specification Test Value
0.1C Discharge Capacity (mAh/g) ≥ 215 217.80

Values measured by Xnergy. Typical values for reference; not guaranteed unless otherwise specified.

Note: Specifications listed above are typical and for reference only. Actual electrochemical performance depends on the specific cell architecture, electrolyte formulation, binder/conductive-additive composition, coating thickness, calendering parameters, formation protocol, and testing conditions. For complete lithium-ion battery electrode preparation workflows, see also Xnergy’s related products in the Cathode Materials category, Anode Materials category, Binders category, and Current Collectors category. For electrode-coating equipment, see the Coating equipment category including Automatic Film Coater XN-VC-300, XN-VCH-300, and Slot-Die Coating System XN-SDC. For electrode calendering, see the Calendering equipment category. For mixing and drying, see Planetary Vacuum Mixer and Three-Door Vacuum Drying Oven (XN-DVO-3). For other single-crystal NCM cathodes, see also Xnergy’s Zhenhua E-Chem Single-Crystal NCM523 Cathode and BTR M2-S Single-Crystal Ni83 NCM Cathode.
