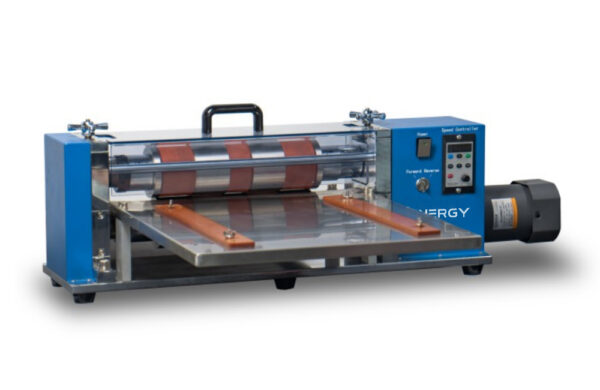

Electrode Slitting Machine（XN-CSE-300）
Product Introduction
The XN-CSE-300 is designed for precision slitting of coated battery electrodes after the coating process. It is suitable for both cathode and anode sheets and ensures clean cutting edges with high dimensional accuracy.
This machine enables accurate strip formation prior to cell assembly, maintaining electrode geometry consistency and minimizing edge defects that could affect battery performance.
Product Features
Adjustable guide positioning system for accurate material alignment during feeding
Motor-driven rolling slitting mechanism ensures smooth and stable cutting
Adjustable blade overlap for precise cutting depth control
Upper and lower circular blades operate synchronously to improve slitting stability
Protective safety cover made of transparent material ensures safe operation
Open-type blade mounting structure allows convenient blade adjustment and replacement
High slitting precision and reliable performance for continuous operation
Main Specifications
Cutting type: Upper and lower circular blade slitting
Slitting width range: 20–300 mm
Applicable electrode width: 80–300 μm (burr ≤ 25 μm after cutting)
Blade diameter: 85 mm
Slitting speed: Up to 4 m/min, adjustable
Power supply: Configurable according to local electrical standards
Power consumption: 200 W
Overall dimensions (L × W × H): approx. 1050 × 870 × 300 mm
Net weight: approx. 60 kg
