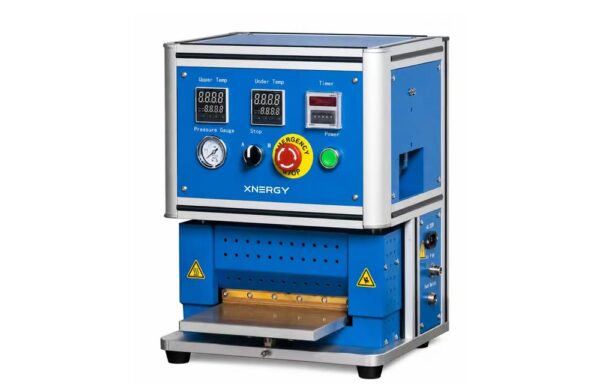

Pouch Cell Top and Side Sealing Machine XN-HS-300
SKU: XN-HS-300
Pouch Cell Top and Side Sealing Machine XN-HS-300 performs
top- and side-edge heat sealing for aluminum-laminated pouch cells with a
300 mm copper sealing head, adjustable pressure, and room-temperature-to-250 °C
temperature control.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Pouch Cell Top and Side Sealing Machine
Equipment Type: Integrated Pouch Cell Heat Sealing Machine
Product Code: XN-HS-300
Brand: Xnergy
Product Introduction:
The XN-HS-300 is an integrated heat sealing machine for the top and side
edges of aluminum-laminated pouch lithium batteries. Resistance heaters transfer
heat to copper sealing heads. Under controlled temperature and pressure, the
aluminum-plastic film softens and fuses to form a flat, uniform seal.
The machine can perform both top and side sealing without replacing the
sealing head. Adjustable temperature, pressure, sealing time, and seal-edge
position support different pouch-cell formats and process requirements.
Key Features:
Integrated compact structure with material support table
Top and side sealing with one machine
300 mm copper sealing head for efficient heat transfer
Room-temperature-to-250 °C adjustable sealing temperature
±2 °C temperature-control accuracy
Adjustable sealing pressure and sealing time
Automatic and manual operating modes
Replaceable sealing blades for optional seal widths
Guided pneumatic actuation for parallel, uniform seals
Anti-scalding protection for heated and moving areas
Technical Specifications:
| Parameter | Specification |
|---|---|
| Applicable Cell Format | Aluminum-laminated pouch cells |
| Structure | Integrated top and side sealing machine |
| Sealing Blade Length | 300 mm |
| Seal Width | Standard 5 ± 0.4 mm; other widths available with a replaceable sealing blade |
| Side-Seal Thickness | 60–400 μm, depending on aluminum-plastic film thickness |
| Top Tab-Seal Thickness | Soft seal: 200–706 μm, depending on film thickness; hard-seal thickness customizable |
| Sealing Temperature | Room temperature to 250 °C, adjustable |
| Temperature-Control Accuracy | ±2 °C |
| Main Body to Seal Edge | 1–5 ± 0.4 mm, adjustable |
| Sealing Time | Standard 2–3 s; adjustable 0–99 s |
| Seal-Thickness Consistency | Difference between any two points <15 μm |
| Operation Modes | Automatic and manual |
| Compressed Air | 5–8 kg/cm² |
| Operating Speed | ≥400 cycles/hour |
| Rated Power | 0.5 kW |
| Equipment Dimensions | 500 × 430 × 480 mm |
| Equipment Weight | 50 kg |
| Electrical Configuration | Configured according to applicable local electrical standards |
Applications:
Pouch-cell top sealing
Pouch-cell side sealing
Aluminum-plastic film heat sealing
Battery R&D and pouch-cell pilot production
Operation and Maintenance:
Clean the equipment regularly with a soft cloth and alcohol, lubricate moving
parts, and inspect screws, nuts, pins, and other fasteners. Keep hands away from
heated and moving areas during operation. If the machine remains unused for an
extended period, clean the moving components and apply suitable rust protection.
Only authorized technical personnel should service the equipment.
Note: Seal width, hard-seal thickness, pressure, fixtures, and
electrical configuration can be adapted to the required pouch-cell process. For
a split 300 mm configuration suitable for glove-box integration, see the
XN-HS-300-S Split-Type Top and Side Sealing Machine.
