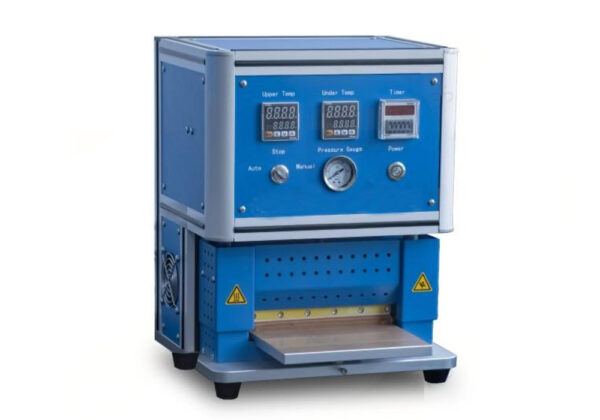

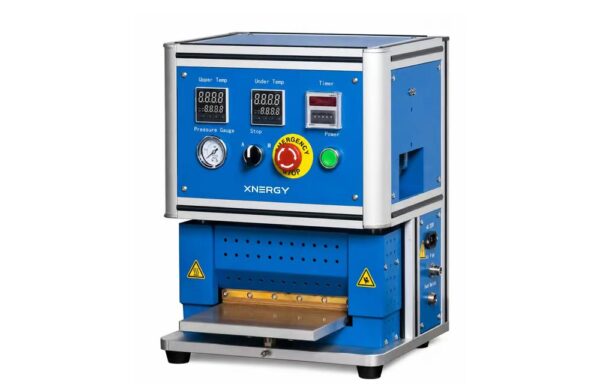

Top-Side Heat Sealing Machine(XN-HS-200)
The XN-HS-200 is a top-side heat sealing machine for pouch lithium-ion batteries after electrolyte filling. Independently controls upper (max 300°C) and lower sealing head temperatures, with adjustable pressure (0.5–0.7 MPa) and sealing time (0.25–35s). Maximum sealing length 200mm, standard sealing width 5mm (customizable), thickness 0.15–0.30mm. Suitable for laboratory research, pilot-scale, and small-batch pouch cell manufacturing.
Need a bulk order? Request a competitive quote today!
Product Introduction
The Top-Side Heat Sealing Machine is designed for sealing the top edge of pouch lithium-ion batteries after electrolyte filling. By precisely controlling temperature, pressure, and sealing time, the machine ensures strong, uniform, and reliable sealing of aluminum-plastic films. It is suitable for laboratory research, pilot-scale production, and small-batch manufacturing of pouch cells, providing consistent sealing quality close to production-line standards.
Product Features
Independent heating control for upper and lower sealing heads
Digital temperature and pressure display for precise process control
Uniform sealing pressure ensures consistent seal width and appearance
High sealing strength with excellent air-tightness
Safety protection design with insulation and shielding
Simple operation, stable performance, and compact structure
Main Specifications
Maximum sealing length: ≤ 200 mm
Sealing width: standard 5 mm (customizable)
Sealing thickness: 0.15–0.30 mm
Applicable pouch size: width ≤ 200 mm
Top sealing depth: ≤ 200 mm (gas exhaust supported)
Upper sealing temperature: max. 300 °C (recommended ≤ 200 °C)
Lower sealing temperature: max. 300 °C (recommended ≤ 160 °C)
Sealing pressure: 0.5–0.7 MPa (adjustable)
Sealing time: 0.25–35 s (adjustable)
Power supply: Configurable according to local electrical standards
Total power: 900 W
Machine dimensions (L × W × H): approx. 340 × 345 × 440 mm
Weight: approx. 30 kg
