Aluminum-Plastic Film Forming Machine XN-CF-300
SKU: XN-CF-300

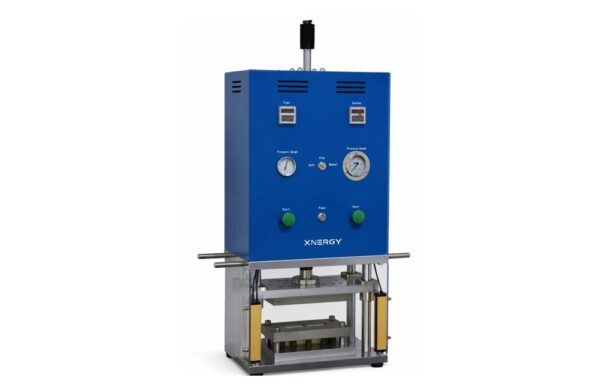

Aluminum-Plastic Film Forming Machine XN-CF-300 is a large-format 5 T pouch-forming machine supporting pockets up to 300 × 240 mm, ≤6 mm forming depth, interchangeable tooling, and 100–200 pcs/h output.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Aluminum-Plastic Film Forming Machine
Equipment Type: Large-Format Pneumatic Aluminum-Plastic Film Pocket Forming Machine
Product Code: XN-CF-300
Brand: Xnergy
Product Introduction:
The XN-CF-300 forms large aluminum-plastic laminate film pockets for pouch lithium batteries. Compared with the XN-CF-200, it provides a larger forming area and 5 T force for pilot-line and larger-format pouch-cell development. Its four-guide-column structure supports smooth vertical movement, repeatable forming, and interchangeable tooling.
Key Features:
- Large-format forming for pockets up to 300 × 240 mm
- 5 T forming force with four-guide-column stability
- Quick mold replacement and convenient depth adjustment
- Precision tooling designed to reduce fishtail wrinkles and collapsed corners
- Supports four-side-sealed and folding-type pouch formats
- Light-curtain and protective-cover safeguards
Technical Specifications:
| Parameter | Specification |
|---|---|
| Maximum Pocket Size — Four-Side Sealing | 300 × 240 mm, single pocket |
| Maximum Pocket Size — Folding Type | 150 × 150 mm, single or double pocket |
| Maximum Forming Depth | ≤6 mm; pocket without breakage and PP layer without wrinkles |
| Maximum Film Sheet Size | 340 × 280 mm |
| Production Capacity | 100–200 pcs/h |
| Forming Force | 5 T |
| Power | 100 W |
| Air Supply | 0.5–0.7 MPa |
| Power Supply | Configured according to applicable local electrical standards |
| Machine Dimensions | Approx. 580 × 440 × 1100 mm |
| Net Weight | Approx. 250 kg |
| Tooling | Custom mold based on the required pocket dimensions |
| Mold / Mold-Core Surface Roughness | 0.4 μm |
| Upper and Lower Mold Flatness | 0.02 mm |
| Mold-Core Flatness | 0.02 mm |
| Forming Length Tolerance | ±0.2 mm |
| Forming Width Tolerance | ±0.2 mm |
| Forming Depth Tolerance | ±0.1 mm |
Applications:
Large-format pouch-cell aluminum-plastic laminate pocket forming
Lithium battery pilot-line and laboratory pouch fabrication
Custom pouch formats using dedicated forming molds
Maintenance and Safety:
- Clean with a soft cloth and alcohol, and lubricate moving parts regularly.
- For extended storage, clean moving components and apply rust-preventive oil.
- Check screws, nuts, and pins periodically for looseness.
- Keep hands and body clear of moving and hazardous zones; operate by one trained person only.
- Unauthorized personnel must not disassemble the machine.
Note: Pocket tooling is produced according to the required pocket dimensions. Final configuration and electrical supply are confirmed for the installation site. Related products: Automatic Z-Fold Electrode Stacking Machine XN-SKMG-150, Semi-Automatic Z-Fold Electrode Stacking Machine XN-SKMC-200, Semi-Automatic Z-Fold Electrode Stacking Machine XN-SKMB-200, Semi-Automatic Z-Fold Electrode Stacking Machine XN-SKMA-200.
