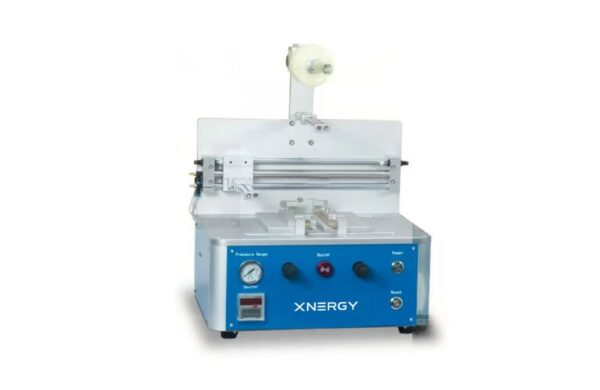

Semi-Automatic Z-Fold Electrode Stacking Machine XN-SKMA-200
SKU: XN-SKMA-200
Semi-Automatic Z-Fold Electrode Stacking Machine XN-SKMA-200 performs Z-fold stacking of cathode sheets, anode sheets, and separator for battery-cell assembly. It supports electrode sizes from 20 × 20 mm to 180 × 180 mm and includes digital stack counting.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Semi-Automatic Z-Fold Electrode Stacking Machine
Equipment Type: Semi-Automatic Electrode Stacking Machine
Product Code: XN-SKMA-200
Brand: Xnergy
Product Introduction:
The XN-SKMA-200 is designed for battery-cell stacking using a Z-fold process. It alternately stacks cathode and anode sheets with continuous separator material, supporting a broad range of electrode dimensions for laboratory and pilot-scale cell assembly.
The machine combines foot-switch pneumatic control with a digital counter for efficient, repeatable operation. Its compact structure is designed for straightforward setup, operation, adjustment, and maintenance.
Key Features:
Z-fold electrode and separator stacking
Supports a wide range of electrode dimensions
Digital counter for stack monitoring
Foot-switch control of pneumatic movement
Simple adjustment, operation, and maintenance
Compact benchtop structure
Technical Specifications:
| Parameter | Specification |
|---|---|
| Stacking Method | Z-fold stacking |
| Separator Roll | 3-inch core; maximum roll diameter Φ200 mm |
| Applicable Electrode Length | 20–180 mm |
| Applicable Electrode Width | 20–180 mm |
| Maximum Stack Thickness | 18 mm |
| Swing-Roller Travel | 300 mm |
| Rated Power | 200 W |
| Compressed Air | 0.4–0.7 MPa |
| Equipment Dimensions | 650 × 400 × 700 mm |
| Control Box Dimensions | 200 × 300 × 380 mm |
| Weight | 26 kg |
| Power Supply | Configured according to applicable local electrical standards |
Applications:
Pouch-cell electrode stacking
Prismatic-cell electrode stacking
Battery-cell research and development
Laboratory cell assembly
Pilot-scale battery production
Note: Electrode dimensions, separator-roll specifications, fixtures, and electrical configuration can be adapted to project requirements. Related equipment includes the Manual Electrode Winding Machine XN-WMC, Automatic Prismatic Cell Winding Machine XN-AWS-100, Automatic Cylindrical Cell Winding Machine XN-AWC-35, Automatic Slitting and Cutting Machine XN-ARSC-300, and Electric Electrode Slitter XN-CSE-300.
