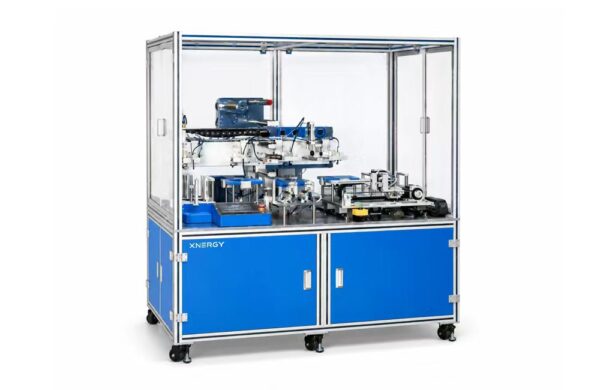

Automatic Z-Fold Electrode Stacking Machine XN-SKMG-150
SKU: XN-SKMG-150
Automatic Z-Fold Electrode Stacking Machine XN-SKMG-150 automates electrode pickup, secondary positioning, separator feeding and correction, Z-fold stacking, separator cutting, and finished-cell removal. It supports 40 × 40 mm to 150 × 150 mm cells with stacking alignment of ≤±0.3 mm.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Automatic Z-Fold Electrode Stacking Machine
Equipment Type: Automatic Electrode Stacking Machine
Product Code: XN-SKMG-150
Brand: Xnergy
Product Introduction:
The XN-SKMG-150 is designed for automatic Z-fold assembly of cathode sheets, anode sheets, and separator. The system performs robotic electrode pickup, secondary positioning, automatic stacking, separator feeding and correction, constant-tension control, separator cutting, and finished-cell removal. Tape application is completed manually.
Adjustable locating fixtures accommodate multiple cell sizes. Separate positive- and negative-electrode gripping mechanisms help prevent cross-contamination, while PLC and HMI control support repeatable operation and convenient adjustment.
Key Features:
Automatic robotic electrode pickup and secondary positioning
Automatic Z-fold stacking and separator feeding
Servo-controlled constant separator tension
Automatic separator correction and cutting
Automatic finished-cell removal
Programmable stacking quantity
Separate cathode and anode gripping mechanisms
Adjustable fixtures for different cell sizes
PLC control with HMI operation
Technical Specifications:
| Parameter | Specification |
|---|---|
| Stacking Method | Z-fold stacking |
| Operation | Automatic electrode pickup, secondary positioning, separator feeding and correction, stacking, separator cutting, and cell removal; manual tape application |
| Stacking Alignment | ≤±0.3 mm |
| Cell Size Range | 40 × 40 mm to 150 × 150 mm |
| Maximum Stack Thickness | 30 mm |
| Maximum Separator Roll Diameter | 250 mm |
| Separator Roll Core | 3-inch core with pneumatic expanding shaft |
| Rated Power | 3 kW |
| Compressed Air | 0.5–0.8 MPa |
| Equipment Dimensions | 1650 × 1050 × 1800 mm |
| Net Weight | 616 kg |
| Recommended Environment | 25 ± 3 °C; 30–90% RH; free from vibration and electromagnetic interference |
| Power Supply | Configured according to applicable local electrical standards |
Applications:
Pouch-cell electrode stacking
Prismatic-cell electrode stacking
Lithium-ion battery research and development
Battery sample preparation
Small-batch stacked-cell production
Note: Locating fixtures and separator-handling configuration can be adapted to project requirements. Related equipment includes the Semi-Automatic Z-Fold Electrode Stacking Machine XN-SKMC-200, Semi-Automatic Z-Fold Electrode Stacking Machine XN-SKMA-200, Semi-Automatic Z-Fold Electrode Stacking Machine XN-SKMB-200, Automatic Slitting and Cutting Machine XN-ARSC-300, and Electric Electrode Slitter XN-CSE-300.
