Battery Tab Cutting and Forming Machine XN-CQZX-200
SKU: XN-CQZX-200

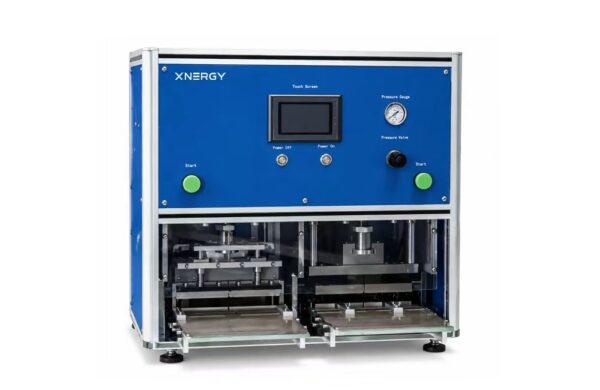

Battery Tab Cutting and Forming Machine XN-CQZX-200 combines pre-welding tab cutting and post-welding tab flattening in a compact benchtop system. It supports cells up to 200 × 200 mm, with independently adjustable stroke, speed, and pressure.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Battery Tab Cutting and Forming Machine
Equipment Type: Pneumatic Battery Tab Cutting and Post-Weld Flattening Machine
Product Code: XN-CQZX-200
Brand: Xnergy
Product Introduction:
The XN-CQZX-200 integrates two cell-tab preparation operations in one compact machine: tab cutting before welding and tab flattening after welding. Cutting stroke, pressing stroke, operating speed, and pressure can be adjusted for samples of different thicknesses. Manual fixture loading provides straightforward positioning for laboratory and pilot-scale cell assembly.
Key Features:
- Combines pre-welding tab cutting and post-welding tab flattening
- Adjustable cutting and pressing stroke, speed, and pressure
- High-strength precision tool-steel upper and lower dies
- Insulated cutter and pressing block help reduce the risk of electrostatic damage and short circuits
- Manual fixture loading and convenient sample positioning
- Compact benchtop configuration
Technical Specifications:
| Parameter | Specification |
|---|---|
| Applicable Cell Size | Up to 200 × 200 mm |
| Tab-Cutting Force | Maximum 10,000 N |
| Tab-Flattening Force | Maximum 10,000 N |
| Cutting Stroke | ≤25 mm |
| Pressing Stroke | ≤25 mm |
| Cutter Length | 110 mm |
| Pressing-Head Size | 105 × 25 mm |
| Compressed-Air Supply | 0.5–0.8 MPa |
| Rated Power | 0.1 kW |
| Power Supply | Configured according to applicable local electrical standards |
| Machine Dimensions | Approx. 740 × 500 × 710 mm |
| Net Weight | Approx. 92 kg |
| Loading and Unloading | Manual fixture loading and unloading |
Applications:
Battery-cell tab trimming before welding
Battery-cell tab flattening and shaping after welding
Laboratory and pilot-scale pouch-cell assembly workflows
Maintenance and Safety:
- Clean the machine regularly with a soft cloth lightly moistened with alcohol.
- Lubricate moving parts and inspect screws, nuts, and pins periodically.
- For extended storage, clean exposed moving parts and apply rust-preventive oil.
- Keep hands and body clear of the cutting and pressing zones during operation.
- Operate by one trained person at a time; unauthorized disassembly is prohibited.
Note: Final fixtures and electrical configuration are confirmed according to the cell format and applicable standards at the installation site. Related equipment: Manual Electrode Sheet Sample Cutter XN-MSK, Manual Sample Card Die Cutter XN-MTS, Hand-Held Electrode Disc Cutter XN-HHDC, Precision Tool-Steel Electrode Die-Cutter XN-PDCM-150, Automatic Electrode Die-Cutting Machine XN-PDCA-350.
