Manual Electrode Disc Punching Machine XN-HPM-24
SKU: XN-HPM-24

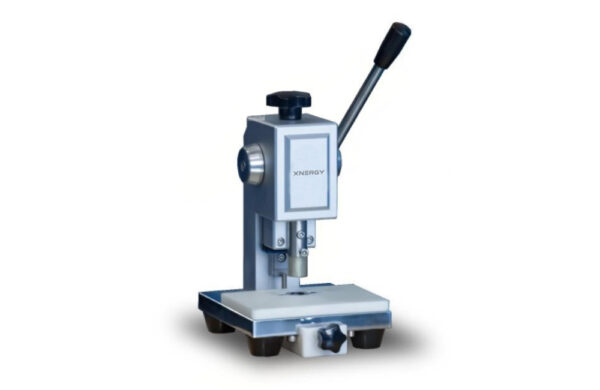

Manual Electrode Disc Punching Machine XN-HPM-24 is a compact hand-operated punch for cutting discs from coin-cell electrodes, separator films, and other thin battery materials. A hand-crank lever drives the upper punch through a precision linear slide into the lower die, producing burr-free discs in a single stroke.
Die sizes Φ5 to Φ24 mm (customer-specified), material thickness 0.005–0.5 mm, anti-rust aluminum body, antistatic ABS scrap tray. Compact enough to pass through a Φ200 mm glovebox antechamber.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Manual Electrode Disc Punching Machine XN-HPM-24
Equipment Type: Hand-Operated Electrode Disc Punch / Coin-Cell Electrode Puncher
Product Code: XN-HPM-24
Brand: Xnergy
Product Introduction:
Manual Electrode Disc Punching Machine XN-HPM-24 is a compact hand-operated punching tool designed for cutting precision discs from coin-cell electrodes, separator films, and other thin battery materials. A hand-crank lever drives the upper punch through a precision linear slide into the lower die, shearing the material into a clean disc with no burr or impression. The unit is fully mechanical with no power supply requirement, and is compact enough to pass through a Φ200 mm glovebox antechamber for inert-atmosphere disc preparation. The corrosion-resistant aluminum body and antistatic ABS scrap tray support clean use in dry-room and glovebox environments.
Working Principle:
Place the material to be punched on the lower die plate. Rocking the hand-crank lever drives the upper punch downward into the lower die, shearing through the material. Remove the scrap tray to retrieve the punched disc.
Key Features:
Hand-operated, no power supply required — works in any environment
Compact footprint passes through a Φ200 mm glovebox antechamber for inert-atmosphere operation
Precision linear slide guides the upper punch — no burr, no impression
Configurable die sizes from Φ5 mm to Φ24 mm (customer-specified)
Wide material thickness range 0.005 – 0.5 mm (5 μm to 500 μm)
Suits cathode foil, anode foil, separator films, current-collector foils, and other thin battery materials
Corrosion-resistant aluminum-alloy body
Antistatic ABS scrap tray with bottom scrap discharge
Lightweight (7.5 kg), simple cleaning and maintenance
Includes M5 wrench
Technical Specifications:
| Parameter | Specification |
|---|---|
| Operation | Hand-cranked, fully mechanical (no power required) |
| Punch Diameter | Φ5 – Φ24 mm (customer-specified die) |
| Punching Force | ≥ 100 kg |
| Punch Stroke | ≥ 25 mm |
| Die Shank Diameter | 10 mm |
| Material Thickness Range | 0.005 – 0.5 mm (5 μm – 500 μm) |
| Body Material | Aluminum alloy, corrosion-resistant |
| Scrap Tray | Antistatic ABS, bottom scrap discharge |
| Glovebox Compatibility | Passes through Φ200 mm or larger antechamber |
| Dimensions (L × W × H) | 150 × 170 × 235 mm |
| Weight | 7.5 kg |
| Included Accessory | M5 wrench × 1 |
Application Areas:
XN-HPM-24 is suitable for:
Coin-cell (CR20xx, CR16xx) electrode disc preparation from coated electrode strip
Punching separator film discs to match cell-format requirements
Cutting discs from current-collector foils for half-cell or symmetric-cell testing
Glovebox / inert-atmosphere disc preparation for moisture- and oxygen-sensitive materials such as lithium metal, sodium metal, and solid-state electrolytes
R&D and quality-check sampling of electrode coatings
Maintenance:
Clean the equipment regularly with a soft cloth lightly moistened with alcohol
Lubricate moving parts periodically to ensure smooth operation
If the equipment is not used for an extended period, clean the moving surfaces and apply a protective anti-rust coating
Periodically inspect screws, nuts, pins, and other fasteners to prevent loosening
Safety Notes:
Do not place hands or other body parts in the punch / die work area during operation
Operation should be performed by a single trained operator to avoid accidental injury
Disassembly should only be performed by qualified technicians
Specifications are provided for reference. Custom die diameters between Φ5 and Φ24 mm are specified at order time.
Note: Specifications listed above are typical and for reference only. Actual punching performance depends on material thickness, hardness, and die condition. XN-HPM-24 is positioned as the lab-essential tool for coin-cell electrode preparation — what sets it apart from larger punching machines is the combination of glovebox-passable footprint, fully mechanical operation with no power supply, and a thickness window that extends down to 5 μm for ultra-thin separators and metal-foil substrates. This makes it the standard choice for moisture- and oxygen-sensitive workflows involving lithium metal, sodium metal, and solid-state electrolyte chemistries, where every punching step must happen inside an inert-atmosphere glovebox. Upstream electrode strip is typically produced via the Slot-Die Coating System XN-SDC and then either slit to width on the XN-CSER-300 roll-to-roll slitter or fed directly to XN-HPM-24 for disc punching. For ready-to-punch sodium-ion cathode electrodes, see our NFM Sodium-Ion Cathode Electrode Sheet series. For relevant cell components and substrates, see our Anode Materials (including metallic lithium and sodium metal series) and Current Collectors catalogs.
