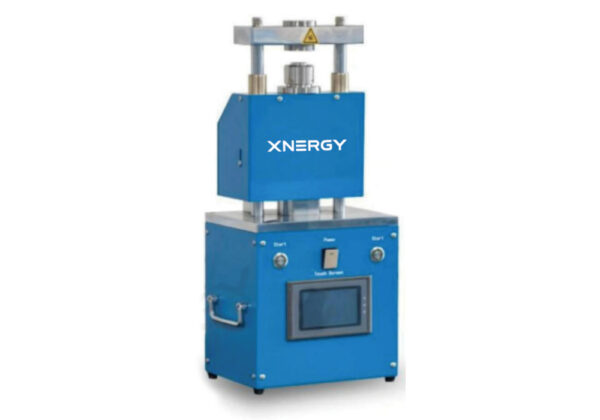

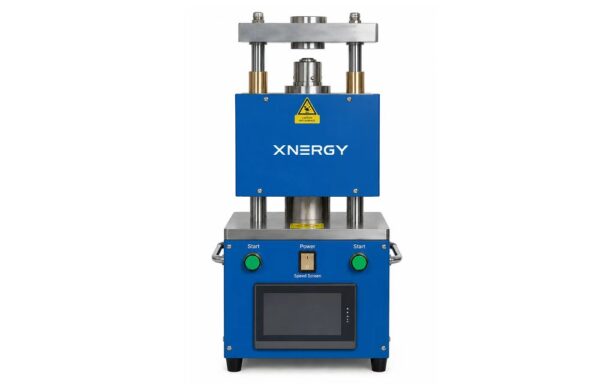

Coin Cell Electric Crimping Machine XN-CCME-20

Product Overview:

Mainly used for laboratory battery material research and development for sample preparation, including sealing of coin cells and capacitors for scientific research. It can also be used for small-batch pilot production in factories. The machine adopts an electric drive for labor-saving operation. By configuring different molds, it can also be used for dry powder pressing, wet powder pressing, forming, riveting, and other operations.

Mold Configuration:

The standard configuration is suitable for 20-series coin cells. By replacing mold accessories, it can also be used to seal 2450, 2430, and other types of coin cells, as well as for mold disassembly.

Key Features:

Driven by a large lead screw, capable of bearing high torque.
Double-button start design for safe operation.
Flexible pressure buffering mechanism ensures balanced sealing pressure during forming.
HMI touch screen operation, parameters are easy to set with a high level of automation.
Sealing pressure value can be set and displayed.
If there is no obstacle such as a sliding plate in the Φ360 glove box transition chamber, the machine can pass through the chamber directly, compact size and convenient operation.
Electric drive ensures no vibration and no electrolyte leakage during battery sealing.
Precision mold design ensures accurate and reliable sealing, while the sturdy steel structure guarantees stable and safe operation.
Attractive appearance, easy maintenance, compact size, convenient operation, and precise forming.

Technical Parameters

Sealing pressure is precisely controlled and can be freely set by digital input.
Power supply: single-phase voltage 110V–220V AC ±10%, frequency 50Hz/60Hz, power 0.1KW.
Sealing pressure: Max. 1000 kg, digital display adjustable.
Sealing stroke: 25 mm.
Standard sealing mold: CR20 sealing mold (CR2016, CR2025, CR2032), other molds optional.
Dimensions: L270 mm × W185 mm × H570 mm.
Weight: 30 kg.

Maintenance Methods

Frequently wipe with a soft cloth dipped in alcohol to keep the equipment clean.
Lubricate moving parts regularly to ensure smooth operation.
If the machine is not used for a long time, clean the surface of the moving parts and apply anti-rust oil for protection.
Regularly check screws, nuts, pins, and other fasteners on the machine to prevent loosening and avoid equipment failure or personal injury accidents.
