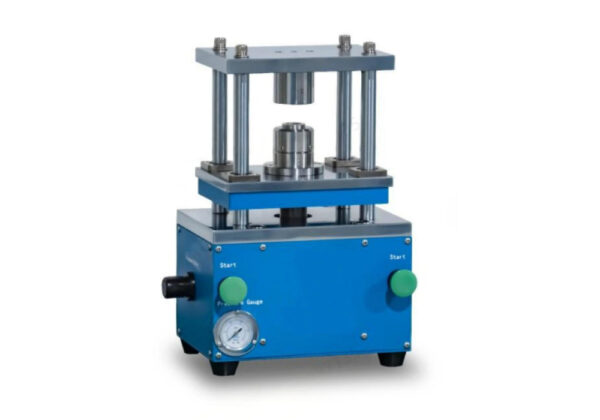

Pneumatic Coin Cell Crimping Machine XN-CCMP-20
SKU: XN-CCMP-20
Pneumatic Coin Cell Crimping Machine XN-CCMP-20 is a pure-pneumatic machine for laboratory coin-cell and capacitor sealing, battery-material sample preparation and small-batch trial production. It is supplied with a CR20 die and supports 16, 24 and 30 series cells with compatible die components. The documented gas supply is 0.4–0.5 MPa, with 0.4 MPa recommended.
Need a bulk order? Request a competitive quote today!

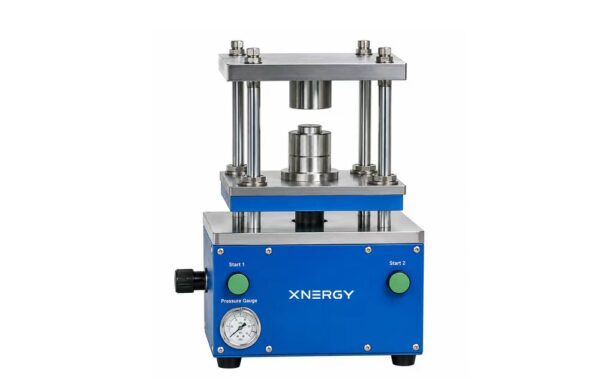

Pneumatic Coin Cell Crimping Machine XN-CCMP-20
Machine Type: Pneumatic Coin Cell Crimping Machine
Product Code: XN-CCMP-20
Brand: Xnergy
Product Introduction
The XN-CCMP-20 is designed for laboratory battery-material sample preparation, coin-cell and capacitor sealing, and small-batch trial production. With compatible dies, it can also support coin-cell disassembly, electrode-disc pressing and battery-powder pellet pressing.
Core Features
- High-precision lower-die positioning ring controls sealing height
- Screw-and-spring upper-die ejector helps release a stuck coin cell
- Supports compressed air or inert-gas-cylinder supply
- Dedicated external exhaust helps protect the glovebox atmosphere
- Pure pneumatic operation requires no electrical power
- Recommended operating pressure is 0.4 MPa
- Precision die design and rigid steel structure support stable operation
- Anti-short-circuit design for coin-cell sealing
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | XN-CCMP-20 |
| Brand | Xnergy |
| Product Type | Pneumatic coin cell crimping machine |
| Standard Coin Cell Series | 20 series |
| Optional Coin Cell Series | 16, 24 and 30 series with compatible die components |
| Gas Source | Argon or nitrogen cylinder, or compressed air |
| Gas Supply Pressure | 0.4–0.5 MPa |
| Recommended Operating Pressure | 0.4 MPa |
| Gas Consumption | Approximately 480 ml per crimping cycle |
| Exhaust Design | Dedicated external exhaust port; supports KF40 connection |
| Crimping Stroke | 30 mm |
| Standard Crimping Die | CR20 series |
| Optional Disassembly Dies | CR16, CR20, CR24 and CR30 |
| Power Requirement | Pure pneumatic operation; no electrical power required |
| Safety Feature | Anti-short-circuit design for coin cell sealing |
| Structural Material | High-strength chromium steel with electroplated and coated surface |
| Pneumatic Components | AIRTAC cylinder, fittings, mechanical valve and pressure gauge |
| Machine Dimensions | 300 × 205 × 415 mm |
| Machine Weight | Approximately 32 kg |
| Electrical Standard | Configured to local electrical standards |
Applications
- Laboratory coin-cell assembly and sealing
- Capacitor research sealing
- Small-batch cell trial production
- Coin-cell disassembly with compatible dies
- Electrode-disc and powder-pellet pressing with compatible dies
Note: Compressed air is not recommended for use inside a glovebox. For glovebox operation, use the documented argon or nitrogen supply and route exhaust through the dedicated external port using a suitable connection such as KF40.
Safety and Maintenance Note: Keep hands and other body parts away from moving and working areas during operation. Clean the machine with a soft cloth and alcohol, lubricate moving parts, apply rust-preventive oil before long-term storage, and periodically inspect screws, nuts, pins and other fasteners. Only authorized technical personnel should disassemble the equipment.
