Manual Hydraulic Coin Cell Crimping Machine XN-CCM-20
SKU: XN-CCM-20
Manual Hydraulic Coin Cell Crimping Machine XN-CCM-20 is a compact manual hydraulic machine for laboratory coin-cell and capacitor sealing, sample preparation and small-batch trial production. The standard tungsten-steel die supports 20-series coin cells; replaceable die components can support 24, 18, 16, 12 and other custom series. Normal crimping uses a documented pressure-gauge reading of 50–70 kg/cm².
Need a bulk order? Request a competitive quote today!

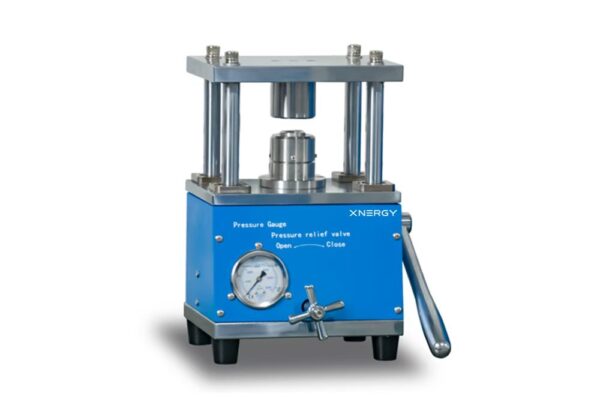

Manual Hydraulic Coin Cell Crimping Machine XN-CCM-20
Machine Type: Manual Hydraulic Coin Cell Crimping Machine
Product Code: XN-CCM-20
Brand: Xnergy
Product Introduction
The XN-CCM-20 is designed for laboratory battery-material sample preparation, coin-cell and capacitor sealing, and small-batch trial production. With compatible replacement die components, the machine can also support coin-cell disassembly, electrode-disc pressing and battery-powder pellet pressing.
Core Features
- High-precision lower-die positioning ring controls sealing height
- Screw-and-spring ejection mechanism helps release a stuck coin cell
- Built-in safety pressure-relief valve with adjustable pressure limit
- Embedded pressure gauge for observing and controlling crimping pressure
- Manual hydraulic drive provides vibration-free sealing
- Low-effort hydraulic structure with lever force below 5 kg
- Precision die design and rigid steel structure for stable operation
- Compact form factor suitable for glovebox use
- Anti-short-circuit design for coin-cell sealing
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | XN-CCM-20 |
| Brand | Xnergy |
| Product Type | Manual hydraulic coin cell crimping machine |
| Standard Die Compatibility | 20-series coin cells |
| Optional Die Compatibility | 24, 18, 16 and 12 series; custom series available |
| Normal Crimping Gauge Reading | 50–70 kg/cm² |
| Manual Lever Force | <5 kg |
| Standard Crimping Die | Tungsten steel |
| Drive Method | Manual hydraulic |
| Safety Features | Pressure relief valve, adjustable pressure limit and anti-short-circuit design |
| Structural Material | High-strength chromium steel with electroplated and coated surface |
| Machine Dimensions | 223 × 170 × 325 mm |
| Machine Weight | 25 kg |
| Glovebox Use | Compact design suitable for glovebox operation |
| Electrical Standard | Configured to local electrical standards |
Operating Procedure
- Place the cell: With the die open, place the coin cell flat in the lower-die locating recess with the negative side facing upward. Tighten the pressure-release handwheel clockwise to its limit.
- Crimp the cell: Pump the manual lever until the dies close. A documented gauge reading of approximately 50–70 kg/cm² is used for normal coin-cell crimping.
- Remove the cell: Loosen the pressure-release handwheel counterclockwise by approximately half a turn. After the die opens automatically, remove the sealed cell.
- Adjust sealing height: Loosen the side set screw on the sealing-height limit nut, rotate the nut to the required height, then retighten the set screw.
Applications
- Coin-cell laboratory assembly and sealing
- Capacitor research sealing
- Small-batch cell trial production
- Coin-cell disassembly with compatible dies
- Electrode-disc and powder-pellet pressing with compatible dies
Safety and Maintenance Note: Place each cell flat in the locating recess with the negative side upward. Keep hands away from guide columns, sliding plates and die areas during operation. Keep moving parts clean and lubricated, and periodically inspect screws, nuts, pins and other fasteners. Consult Xnergy before adjusting the machine beyond the documented normal pressure range.
