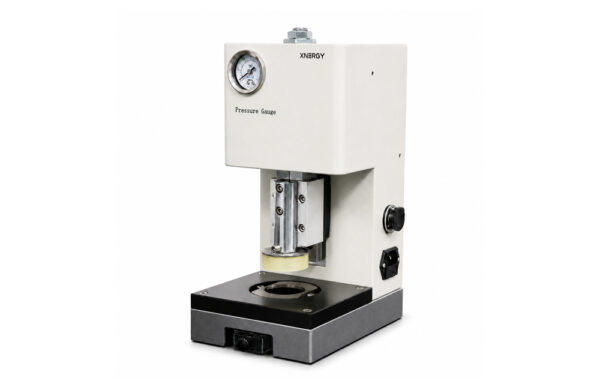

Compact Pneumatic Electrode Disc Cutter XN-QCP60
SKU: XN-QCP60
Compact Pneumatic Electrode Disc Cutter XN-QCP60 is designed for clean punching and blanking of 0.005–0.5 mm cathode sheets, anode sheets, and separator materials. It accepts customer-specified Ø3–Ø50 mm dies, provides ≥300 kgf cutting force, and can pass through glovebox transfer chambers with an opening diameter of Ø360 mm or larger.
Configured to local electrical standards.
Need a custom die size? Request a competitive quote today! Please specify the required disc diameter, material, and material thickness.
Name: Compact Pneumatic Electrode Disc Cutter XN-QCP60
Equipment Type: Compact Pneumatic Electrode Disc Cutter
Product Code: XN-QCP60
Brand: Xnergy
Product Introduction:
XN-QCP60 is a compact pneumatic punching machine for producing clean circular samples from battery cathode sheets, anode sheets, separator paper, and other thin sheet materials. Interchangeable, customer-specified dies support punching and blanking from Ø3 to Ø50 mm. Its compact aluminum-alloy body is suitable for laboratory and glovebox workflows, while foot-switch actuation simplifies sample preparation.
Core Features:
- High-precision slide-rail guidance for clean cuts without burrs, indentations, or edge damage
- Customer-specified Ø3–Ø50 mm interchangeable dies
- Supports 0.005–0.5 mm battery electrode and separator materials
- Compact body passes through glovebox transfer chambers with Ø360 mm or larger openings
- Foot-switch operation for convenient punching cycles
- Corrosion-resistant aluminum-alloy machine body
- Anti-static ABS scrap collection box
Technical Specifications:
| Parameter | Specification |
|---|---|
| Equipment Type | Compact pneumatic electrode disc cutter |
| Product Code | XN-QCP60 |
| Brand | Xnergy |
| Die Diameter | Ø3–Ø50 mm, customer-specified |
| Cutting Force | ≥300 kgf |
| Press Stroke | Max. 25 mm |
| Compatible Material Thickness | 0.005–0.5 mm |
| Worktable | 150 × 130 mm |
| Overall Dimensions | 207 × 200 × 330 mm (L × W × H) |
| Glovebox Transfer Chamber Opening | Ø360 mm or larger |
| Body Material | Corrosion-resistant aluminum alloy |
| Net Weight | 12 kg |
| Operation | Foot switch |
| Scrap Collection Box | Anti-static ABS |
| Electrical Configuration | Configured to local electrical standards |
Applications:
- Circular cathode and anode sample preparation
- Separator paper and thin-film punching
- Coin-cell and laboratory battery research
- Glovebox-based sample preparation
- Battery materials R&D and pilot-scale workflows
Operation:
Place the material on the lower die, activate the foot switch, and allow the upper punch to descend through the die. After cutting, remove the sample and empty the scrap collection box as required.
Note: Die diameter is customer-specified. Please confirm the required disc diameter, material type, and material thickness when requesting a quotation. Configured to local electrical standards. Explore more equipment in the Slitting & Die Cutting category. For larger-format electrode die cutting, compare the XN-QMQ85 Pneumatic Electrode Die Cutter.
