Split-Type Pouch Cell Top and Side Sealing Machine XN-HS-400-S
SKU: XN-HS-400-S
Split-Type Pouch Cell Top and Side Sealing Machine XN-HS-400-S
provides top and side heat sealing up to 400 mm for aluminum-laminated pouch
cells. Its separate working and control units support glove-box installation,
with adjustable pressure, heating up to 250 °C, and automatic/manual operation.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Split-Type Pouch Cell Top and Side Sealing Machine
Equipment Type: Split-Type Pouch Cell Heat Sealing Machine
Product Code: XN-HS-400-S
Brand: Xnergy
Product Introduction:

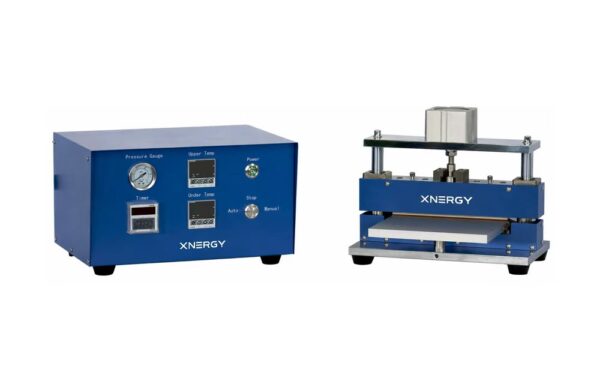

The XN-HS-400-S is designed for sealing the top and side edges of
aluminum-laminated pouch lithium batteries. Its split structure separates the
compact working unit from the control unit, making the sealing section easier
to integrate into a glove box.
Resistance heaters transfer heat to copper sealing heads. Under controlled
temperature and pressure, the aluminum-plastic film softens and fuses to form a
flat, uniform seal. Top and side sealing can be completed without replacing the
sealing head.
Key Features:
Split working and control units for glove-box integration
Top and side sealing up to 400 mm
Copper sealing heads for efficient heat transfer
Room-temperature-to-250 °C adjustable sealing temperature
±2 °C temperature-control accuracy
Adjustable sealing pressure and sealing time
Automatic and manual operating modes
Replaceable sealing blades for optional seal widths
Guided pneumatic actuation for parallel, uniform seals
Anti-scalding protection and material support table
Technical Specifications:
| Parameter | Specification |
|---|---|
| Applicable Cell Format | Aluminum-laminated pouch cells |
| Structure | Split working unit and control unit; glove-box compatible |
| Maximum Side Seal | ≤400 mm |
| Maximum Top Seal | ≤400 mm, including gas pouch |
| Sealing Blade Length | 400 mm |
| Gas-Pouch Edge Width | 15–90 mm |
| Seal Width | Standard 5 ± 0.4 mm; optional 3–10 mm with replaceable sealing blade |
| Side-Seal Thickness | 60–400 μm, depending on aluminum-plastic film thickness |
| Top Tab-Seal Thickness | Soft seal: 200–706 μm, depending on film thickness; hard-seal thickness customizable |
| Sealing Temperature | Room temperature to 250 °C, adjustable |
| Temperature-Control Accuracy | ±2 °C |
| Main Body to Seal Edge | 1–5 ± 0.4 mm, adjustable |
| Sealing Time | Standard 2–3 s; adjustable 0–99 s |
| Seal-Thickness Consistency | Difference between any two points <15 μm |
| Operation Modes | Automatic and manual |
| Compressed Gas | 5–8 kg/cm²; use gas compatible with the glove-box atmosphere when installed inside a glove box |
| Operating Speed | ≥400 cycles/hour |
| Rated Power | 0.5 kW |
| Working-Unit Dimensions | 515 × 150 × 290 mm |
| Control-Unit Dimensions | 320 × 240 × 220 mm |
| Equipment Weight | 35 kg |
| Electrical Configuration | Configured according to applicable local electrical standards |
Applications:
Pouch-cell top sealing
Pouch-cell side sealing
Aluminum-plastic film heat sealing
Glove-box pouch-cell assembly
Battery R&D and pilot-scale pouch-cell production
Operation and Maintenance:
Keep the equipment clean with a soft cloth and alcohol, lubricate moving
parts regularly, and inspect screws, nuts, pins, and other fasteners. If the
machine will remain unused, clean the moving components and apply suitable rust
protection. Keep hands away from moving and heated areas, and allow only
authorized technical personnel to service the equipment.
Note: Seal width, hard-seal thickness, pressure, fixtures,
gas compatibility, and electrical configuration can be adapted to the required
pouch-cell process. For a compact split 300 mm configuration, see the
XN-HS-300-S Split-Type Sealing Machine.
An integrated 300 mm option is available as the
XN-HS-300 Top and Side Sealing Machine.
Related equipment includes the
XN-HS-200-S Split-Type Sealing Machine
and the
XN-CF-200 Aluminum-Plastic Film Forming Machine.
Explore more equipment in
Pouch Cell Assembly.
