LLZO Oxide Solid Electrolyte Pellet XN-LLZO-PE
SKU: XN-LLZO-PE

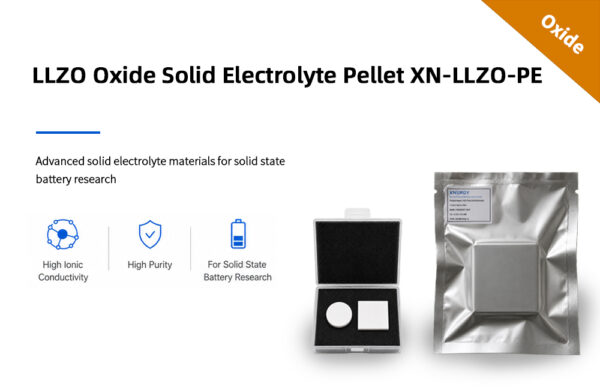

LLZO Oxide Solid Electrolyte Pellet XN-LLZO-PE is a round LLZO oxide solid-state electrolyte ceramic pellet available in 10.0 ± 0.5 mm and 10.5 ± 0.5 mm diameters, with 1.0–4.0 mm thickness and ≥0.70 mS/cm ionic conductivity.
Standard configuration: Round pellet. For other shapes, please contact us or leave a note with your requirements.
Doping options: LLZO pellets are available in Ta-doped, Nb-doped, Ta/Nb co-doped, and Ga-doped variants; please specify the required dopant when requesting a quote.
Need a bulk order or custom specification? Request a competitive quote today!
Name: LLZO Oxide Solid Electrolyte Pellet XN-LLZO-PE
Material Type: LLZO Oxide Solid Electrolyte Pellet
Product Code: XN-LLZO-PE
Material: LLZO
Shape: Round pellet
Brand: Xnergy
Product Introduction:
XN-LLZO-PE is a round LLZO oxide solid-state electrolyte ceramic pellet for solid-state battery, ceramic electrolyte, interface, and materials-characterization research. The supplied specification lists 10.0 ± 0.5 mm and 10.5 ± 0.5 mm diameter options with a 1.0–4.0 mm thickness range and ±0.1 mm thickness tolerance.
Core Features:
- Round LLZO oxide solid-state electrolyte ceramic pellet
- Uniform color with no visible cracks
- 10.0 ± 0.5 mm and 10.5 ± 0.5 mm diameter options
- 1.0–4.0 mm thickness range; ±0.1 mm tolerance
- Main crystal phase referenced to PDF#80-0457
- ≥0.70 mS/cm ionic conductivity by EIS at 25 ± 2 °C
- XRD and EIS characterization figures supplied
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Type | LLZO oxide solid electrolyte pellet |
| Product Code | XN-LLZO-PE |
| Brand | Xnergy |
| Material | LLZO |
| Shape | Round pellet |
| Appearance | Uniform color; no visible cracks |
| Diameter Options | 10.0 ± 0.5 mm; 10.5 ± 0.5 mm |
| Thickness | 1.0–4.0 mm; tolerance ±0.1 mm |
| Main Crystal Phase | PDF#80-0457 |
| Phase Test Method | XRD |
| Ionic Conductivity | ≥0.70 mS/cm |
| Conductivity Test Condition | EIS; ceramic pellet; 25 ± 2 °C |

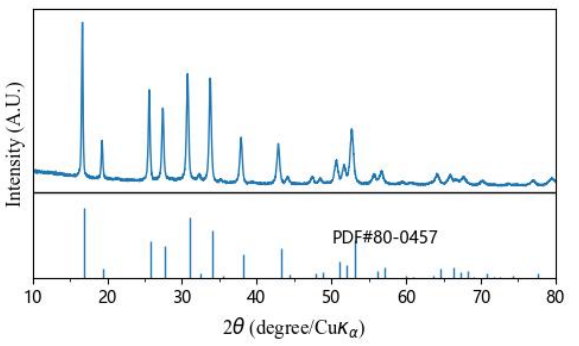

X-Ray Diffraction:
The supplied XRD pattern is shown with the PDF#80-0457 reference pattern for phase comparison.

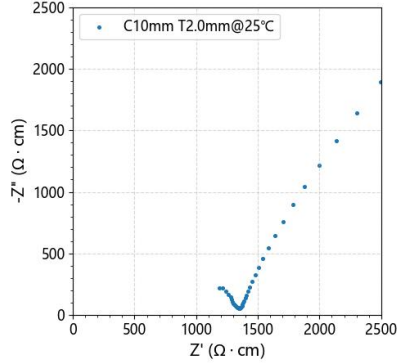

Electrochemical Impedance Spectroscopy:
The supplied EIS plot is labeled for a C10 mm, T2.0 mm sample measured at 25 °C.
Applications:
- All-solid-state battery electrolyte-pellet research
- LLZO ceramic electrolyte evaluation
- Lithium-metal and solid-electrolyte interface studies
- Electrochemical impedance and materials characterization
- Laboratory cell and ceramic-component development
Doping options: LLZO pellets are available in Ta-doped, Nb-doped, Ta/Nb co-doped, and Ga-doped variants; please specify the required dopant when requesting a quote.
Note: The standard specification for this product is a round pellet. For other shapes, please contact us or leave a note with your requirements. Reported values are based on the supplied product specification. Confirm the required diameter and thickness when requesting a quotation. Actual performance depends on component geometry, surface preparation, electrode contact, cell design, temperature, and test method. Explore the Oxide category and Solid-State Electrolytes.
