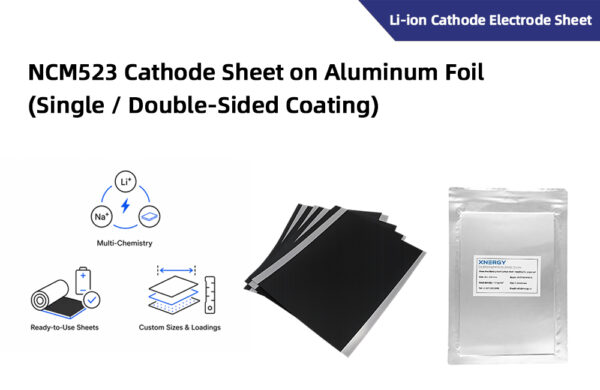

NCM523 Cathode Sheet on Aluminum Foil Single/Double-Sided Coating

NCM523 Cathode Sheet on Aluminum Foil (Single / Double-Sided Coating)

SKU: XN-NCM523-ES

Free Shipping Price range: $180.00 through $228.00

NCM523 Cathode Sheet on Aluminum Foil (Single / Double-Sided) — NCM523 (Ni:Co:Mn ≈ 5:2:3) on 16 μm Al foil, 241 × 200 mm; single-sided 11.5 ± 0.2 mg/cm², double-sided 23 ± 0.4 mg/cm²; compacted density 3.0–3.4 g/cm³; AM content 95.5%.

Reference capacity 160 mAh/g at 0.1C (3.0–4.3 V).

Need a bulk order? Request a competitive quote today!

Name: NCM523 Cathode Sheet on Aluminum Foil (Single / Double-Sided Coating)

Material Type: NCM523 (Ni:Co:Mn ≈ 5:2:3) on 16 μm Aluminum Foil

Product Code: XN-NCM523-ES

Product Introduction:

NCM523 is a lithium nickel cobalt manganese oxide cathode with Ni:Co:Mn ≈ 5:2:3 molar ratio, offering a balance of capacity, stability, and cost. This electrode sheet is coated on 16 μm aluminum foil and available in single-sided (11.5 ± 0.2 mg/cm²) and double-sided (23 ± 0.4 mg/cm²) configurations. Electrode size is 241 mm × 200 mm with a 12.5 mm uncoated edge on each side. Reference specific capacity is 160 mAh/g at 0.1C (3.0–4.3 V). Supplied 5 sheets/pack.

Key Features:

NCM523 (Ni:Co:Mn ≈ 5:2:3) — balanced capacity and cost
Reference specific capacity 160 mAh/g at 0.1C (3.0–4.3 V)
Available in single-sided (11.5 ± 0.2 mg/cm²) and double-sided (23 ± 0.4 mg/cm²) coating
Current collector: 16 μm aluminum foil, 4.22 mg/cm²
Compacted density: 3.0 ± 0.1 g/cm³ (single-sided) / 3.4 ± 0.1 g/cm³ (double-sided)
Active material mass ratio 95.5%
Total thickness 70–90 μm (single-sided, calendered)
Electrode size: 241 × 200 mm (coating area 241 × 175 mm)
Packaging: 5 sheets/pack

Single-Sided Coating Specifications:

Parameter Specification
Electrode Sheet Size 241 mm (L) × 200 mm (W)
Coating Area Size 241 mm (L) × 175 mm (W) (12.5 mm uncoated edge on each side)
Coating Type Single-sided coating (calendered)
Total Thickness (μm) 70–90
Current Collector Thickness (μm) 16
Coating Areal Density (mg/cm²) 11.5 ± 0.2
Current Collector Areal Density (mg/cm²) 4.22
Active Material Mass Ratio 95.5%
Compaction Density (g/cm³) 3.0 ± 0.1
Voltage Range 3.0–4.3 V
Reference Specific Capacity 160 mAh/g (0.1C)

Double-Sided Coating Specifications:

Parameter Specification
Electrode Sheet Size 241 mm (L) × 200 mm (W)
Coating Area Size 241 mm (L) × 175 mm (W) (12.5 mm uncoated edge on each side)
Coating Type Double-sided coating
Substrate Thickness (μm) 16
Coating Areal Density (mg/cm²) 23 ± 0.4
Foil Areal Density (mg/cm²) 4.22
Compaction Density (g/cm³) 3.4 ± 0.1
Active Material Mass Ratio 95.5%
Reference Specific Capacity 160 mAh/g
Reference Voltage Range 3.0–4.3 V

Notes:

  1. The active material mass ratio is subject to actual measurement. The above parameters are for reference only.
  2. After opening, please seal and store properly. It can be kept in a glove box or in an oven at 60°C.

Storage & Handling:

Store sealed in a cool, dry, low-humidity environment. After opening, reseal immediately and store in a glove box or in a drying oven at 60°C. Handle by the edges to avoid contaminating the active coating.

Note: Specifications are for reference only. Actual electrochemical performance depends on counter/reference electrode selection, electrolyte, separator, cell assembly conditions, and cycling protocol. For anode electrode sheets, see the Anode Materials category. For electrolytes, see the Electrolytes category. For coin cell assembly components, see Coin Cells & Hardware.

ESD Specifications

Double-Side Coating, Single-Side Coating
